“Lasers are ubiquitous in the present day world, from simple everyday laser pointers to complex laser interferometers used to detect gravitational waves. Our current research will impact many areas of laser applications,” said Ashok Kodigala, an electrical engineering Ph.D. student at UC San Diego and first author of the study.
“Because they are unconventional, BIC lasers offer unique and unprecedented properties that haven’t yet been realized with existing laser technologies,” said Boubacar Kanté, electrical engineering professor at the UC San Diego Jacobs School of Engineering who led the research.
BIC lasers can be readily tuned to emit beams of different wavelengths, a useful feature for medical lasers made to precisely target cancer cells without damaging normal tissue. BIC lasers can also be made to emit beams with specially engineered shapes (spiral, donut or bell curve) — called vector beams — which could enable increasingly powerful computers and optical communication systems that can carry up to 10 times more information than existing ones.
“Light sources are key components of optical data communications technology in cell phones, computers and astronomy, for example. In this work, we present a new kind of light source that is more efficient than what’s available today in terms of power consumption and speed,” said Babak Bahari, an electrical engineering Ph.D. student in Kanté’s lab and a co-author of the study.
The new BIC lasers have the potential to be developed as high-power lasers for industrial and defense applications. The technology could also revolutionize the development of surface lasers for communications and computing applications.
The BIC system created by Kanté’s group is powered with a high frequency laser beam that induced its own laser beam with a lower frequency. “Ideally, this BIC laser would be powered by a physical battery instead of being powered by another laser,” said Kanté.
Unique to the BIC laser is the capability of achieving surface lasing without compromising its compact form. “We demonstrate lasing in the telecommunication band (~1.55 μm) with laser arrays as small as 8-by-8 (~8 x 8 μm),” Kanté said. Other common surface lasers called VCELs — vertical-cavity surface-emitting lasers — need arrays about 100 times larger to achieve lasing. The smaller array consumes less power thus is more energy efficient than other surface lasers.
“Lasing action from photonic bound states in continuum.” Authors of the study are: Ashok Kodigala*, Thomas Lepetit*, Qing Gu*, Babak Bahari, Yeshaiahu Fainman and Boubacar Kanté of UC San Diego.
Making the BIC laser

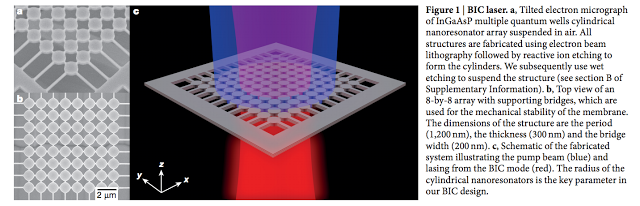

The BIC laser in this work is constructed from a thin semiconductor membrane made of indium, gallium, arsenic and phosphorus. The membrane is structured as an array of nano-sized cylinders suspended in air. The cylinders are interconnected by a network of supporting bridges, which provide mechanical stability to the device.
By powering the membrane with a high frequency laser beam, researchers induced the BIC system to emit its own lower frequency laser beam (at telecommunication frequency).
“Right now, this is a proof of concept demonstration that we can indeed achieve lasing action with BICs,” Kanté said.
“The popular VCSEL may one day be replaced by what we’re calling the ‘BICSEL’ — bound state in the continuum surface-emitting laser, which could lead to smaller devices that consume less power,” Kanté said. The team has filed a patent for the new type of light source.
The array can also be scaled up in size to create high power lasers for industrial and defense applications, he noted. “A fundamental challenge in high power lasers is heating and with the predicted efficiencies of our BIC lasers, a new era of laser technologies may become possible,” Kanté said.
The team’s next step is to make BIC lasers that are electrically powered, rather than optically powered by another laser. “An electrically pumped laser is easily portable outside the lab and can run off a conventional battery source,” Kanté said.
