Researchers have overcome a fundamental obstacle in using new “metamaterials” for radical advances in optical technologies, including ultra-powerful microscopes and computers and a possible invisibility cloak.
The metamaterials have been plagued by a major limitation: too much light is “lost,” or absorbed by metals such as silver and gold contained in the metamaterials, making them impractical for optical devices

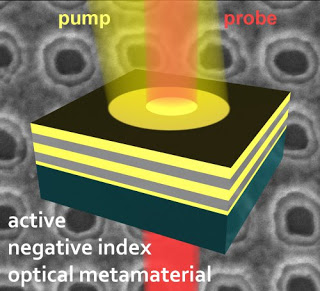

The material developed by Purdue researchers is made of a fishnet-like film containing holes about 100 nanometers in diameter and repeating layers of silver and aluminum oxide. The researchers etched away a portion of the aluminum oxide between silver layers and replaced it with a “gain medium” formed by a colored dye that can amplify light.
Other researchers have applied various gain media to the top of the fishnet film, but that approach does not produce sufficient amplification to overcome losses, Shalaev said.
Instead, the Purdue team found a way to place the dye between the two fishnet layers of silver, where the “local field” of light is far stronger than on the surface of the film, causing the gain medium to work 50 times more efficiently.
The approach was first developed by former Purdue doctoral student Hsiao-Kuan Yuan, now at Intel Corp., and it was further developed and applied by doctoral student Shumin Xiao.
Unlike natural materials, metamaterials are able to reduce the “index of refraction” to less than one or less than zero. Refraction occurs as electromagnetic waves, including light, bend when passing from one material into another. It causes the bent-stick-in-water effect, which occurs when a stick placed in a glass of water appears bent when viewed from the outside.
Being able to create materials with an index of refraction that’s negative or between one and zero promises a range of potential breakthroughs in a new field called transformation optics. Possible applications include a “planar hyperlens” that could make optical microscopes 10 times more powerful and able to see objects as small as DNA; advanced sensors; new types of “light concentrators” for more efficient solar collectors; computers and consumer electronics that use light instead of electronic signals to process information; and a cloak of invisibility.
Excitement about metamaterials has been tempered by the fact that too much light is absorbed by the materials. However, the new approach can dramatically reduce the “absorption coefficient,” or how much light and energy is lost, and might amplify the incident light so that the metamaterial becomes “active,” Shalaev said.
