A relatively fast, easy and inexpensive technique for inducing nanorods – rod-shaped semiconductor nanocrystals – to self-assemble into one-, two- and even three-dimensional macroscopic structures has been developed by a team of researchers with the U.S. Department of Energy (DOE)’s Lawrence Berkeley National Laboratory (Berkeley Lab). This technique should enable more effective use of nanorods in solar cells, magnetic storage devices and sensors. It should also help boost the electrical and mechanical properties of nanorod-polymer composites.
Leading this project was Ting Xu, a polymer scientist who holds joint appointments with Berkeley Lab’s Materials Sciences Division and the University of California (UC) Berkeley’s Departments of Materials Sciences and Engineering, and Chemistry. Xu and her research group used block copolymers – long sequences or “blocks” of one type of monomer bound to blocks of another type of monomer – as a platform to guide the self-assembly of nanorods into complex structures and hierarchical patterns. Block copolymers have an innate ability to self-assemble into well-defined arrays of nano-sized structures over macroscopic distances.
Future work will look at assembling nanorods into tetrapod and other shapes.

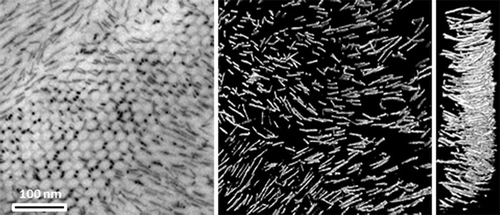

Transmission electron micrograph (a) shows cadmium sulfide nanorods forming arrays that are aligned and oriented parallel to the cylindrical microdomains of block copolymers. Schematic drawing (b) illustrates copolymers with nanorods.
Nanoletters – Direct Nanorod Assembly Using Block Copolymer-Based Supramolecules
“Ours is a simple and versatile technique for controlling the orientation of nanorods within block copolymers,” Xu says. “By varying the morphology of the block copolymers and the chemical nature of the nanorods, we can provide the controlled self-assembly in nanorods and nanorod-based nanocomposites that is critical for their use in the fabrication of optical and electronic devices.”
Nanorods – particles of matter a thousand times smaller than the stuff of today’s microtechnologies – display highly coveted optical, electronic and other properties not found in macroscopic materials. To fully realize their vast technological promise, however, nanorods must be able to assemble themselves into complex structures and hierarchical patterns, similar to what nature routinely accomplishes with proteins.
Xu and her research group first enlisted block copolymers as allies in this self-assembly effort in 2009, working with the spherical nanoparticles commonly known as quantum dots. In that study, they lashed quantum dots to block copolymers via a “mediator” of small adhesive molecules. In this latest development, Xu and her group again made use of adhesive molecules, but this time to mediate between the nanorods and supramolecules of block copolymers. A supramolecule is a group of molecules that act as a single molecule able to perform a specific set of functions.
“Block copolymer supramolecules self-assemble and form a wide range of morphologies that feature microdomains typically a few to tens of nanometers in size,” Xu says. “As their size is comparable to that of nanoparticles, the microdomains of block copolymer supramolecules provide an ideal structural framework for the co-assembly of nanorods.”
Xu and her group incorporate nanorods into solutions of block copolymer supramolecules that form spherical, cylindrical and lamellar microdomains. During the drying process energy is contributed to the system from the interactions between nanorod ligands and polymers, the entropy associated with polymer chain deformation upon nanorod incorporation, and the interactions between individual nanorods. Xu and her group observed that these energetic contributions determine the placement and distribution of the nanorods, as well as the overall morphology of the nanorod-block copolymer composites. These energetic contributions can be easily tuned by varying the supramolecular morphology, which is accomplished simply by attaching different types of small molecules to the side chains of the block copolymers.
“We can readily access a wide library of nanorod assemblies including arrays of nanorods aligned parallel to block copolymer cylindrical microdomains, continuous nanorod networks, and nanorod clusters,” Xu says. “Since the macroscopic alignment of block copolymer microdomains can be obtained in bulk and in thin films by the application of external fields, our technique should open up a viable route to manipulate the macroscopic alignments of nanorods.”
This new technique can produce ordered arrays of nanorods that are macroscopically aligned with tunable distances between individual rods – a morphology that lends itself to the production of plasmonics, which are materials that hold great promise for superfast computers, ultra-powerful optical microscopes, and even the creation of invisibility carpets. It is also a straightforward nanoparticle self-assembly technique that can produce a continuous network of nanorods with nanoscopic separation distances. Such networks can enhance the macroscopic properties of nanocomposites, including electrical conductivity and material strength.
Xu and her group are now investigating the self-assembly of semiconductor nanocrystals that take the shapes of cubes or tetrapods, both of which have important potential applications for photovoltaic and other technologies.
“We’d also like to investigate the self-assembly of nanoparticles into combinations of different shapes,” Xu says.
Developing routes to control the organization of one-dimensional nanomaterials, such as nanorods, with high precision is critical to generate functional materials since the collective properties depend on their spatial arrangements, interparticle ordering, and macroscopic alignment. We have systematically investigated the coassemblies of nanorods and block copolymer (BCP)-based supramolecules and showed that the energetic contributions from nanorod ligand–polymer interactions, polymer chain deformation, and rod–rod interactions are comparable and can be tailored to disperse nanorods with control over inter-rod ordering and the alignment of nanorods within BCP microdomains. By varying the supramolecular morphology and chemical nature of the nanorods, two highly sought-after morphologies, that is, nanoscopic networks of nanorods and nanorod arrays parallel to cylindrical BCP microdomains can be obtained. The supramolecular approach can be applied to achieve morphological control in nanorod-containing nanocomposites toward fabrication of optical and electronic nanodevices.
