Mo Ehsani, professor emeritus of civil engineering at the University of Arizona, has designed a new, lightweight underground pipe he says could transform the pipeline construction industry.
Radically cheaper pipelines will be able to transform many industries. There are many transformative transportation systems that can be made with cheaper pipelines. It could also enable faster deployment of plumbing and water infrastructure in developing countries. Carbon fiber fabric and lightweight honeycomb materials, plus mobile manufacturing platform, make infinite pipeline technology cheaper and greener while boosting local economies.
Cheap Pipelines Will Enable Many Things. A Small Sample
Details on the new pipeline Manufacturing system
Instead of conventional concrete or steel, Ehsani’s new pipe consists of a central layer of lightweight plastic honeycomb, similar to that used in the aerospace industry, sandwiched between layers of resin-saturated carbon fiber fabric.
In combination, these materials are as strong, or stronger, than conventional steel and concrete pipes, which are time consuming and expensive to manufacture and transport.
Concrete and steel pipes are built in short sections to fit on standard 18-wheel trucks, but Ehsani’s new pipe can be built onsite as a single section of virtually infinite length, hence the product name InfinitPipe.
The heavy industrial manufacturing processes, long-distance trucking, and leak-prone joints used in steel and concrete pipe construction exact a heavy toll on the environment, not to mention bottom line, which is why Ehsani’s company, QuakeWrap, is marketing InfinitPipe as the world’s first “green” pipe.
“There are really two aspects to this invention,” Ehsani says. “One is this new type of lightweight honeycomb pipe. Second is our ability to give clients an endless or infinite pipe, without a joint. That is a big, big breakthrough in the pipeline industry that has implications for natural gas, oil, water, and sewer pipes.”
A literally infinite pipe is, of course, not feasible, but Ehsani’s method of manufacturing could create extremely long sections of joint-free pipe. “We could make a section a mile long,” he says. “Of course, every thousand feet or so, you’d need an expansion joint so the pipe can breathe, but this would certainly not be the same concern we have today, where we have to put a joint every 20 ft.”
The secret of producing virtually endless pipe sections lies in the manufacturing methodology. Ehsani wraps the various layers of carbon fabric and honeycomb around a mandrel, a kind of tubular mold with a cross-sectional shape that matches the pipe’s internal cross-section, which is typically, but not always, circular.
“We basically start with a tube and wrap the materials on the outside,” Ehsani says. “A couple of layers of carbon fabric, then we put on the honeycomb and then a couple of layers of carbon or glass fiber on the outside. This becomes the pipe.”
After testing this manufacturing method, Ehsani had a “eureka” moment when he realized that the finished pipe could be partially slid off the mandrel, and more pipe could be added to the section of pipe remaining on the mandrel. “I thought, why don’t we just slip this off of the mandrel and continue making this pipe?” Ehsani says. “Never stop.”
Carbon fiber, resin, and aerospace honeycomb are all very light materials that can be transported at a fraction of the cost of conventional prefabricated steel and concrete pipe, and Ehsani says he is looking for partners to develop an automated mobile unit to make the pipes onsite.

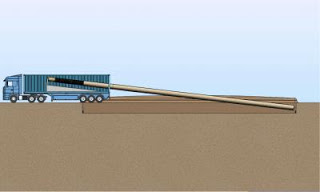

“Imagine having a truck with a mandrel in the back,” Ehsani says. “You start making the pipe on, say, a 20-ft mandrel, and pull off 18 ft so you have two feet left on the mandrel,” he says. “Then you just move the truck forward and drop the pipe in the ground, and keep adding pipe.”
As if virtually eliminating transportation costs, slashing manufacturing costs, and reducing environmental impact weren’t enough, Ehsani sees this pipe technology creating jobs and boosting local economies.
“Suppose you have a pipeline project in a developing nation,” Ehsani says. “You could ship the raw materials to the workers there and they could make this pipe in their own village. No matter what size or shape they want, all they need to do is build a mandrel and make the pipe on the spot. We would be making it with local people under our supervision.”
Closer to home, Ehsani cites the recently awarded $10.7 million contract to build the first four miles of pipe for the billion dollar Navajo-Gallup water supply project, which involves building a 280-mile pipeline to supply water to more than 40 Navajo communities in New Mexico and Arizona.
“The contractor is making a 42-in diameter pipe for four miles, which works out to $507 a foot,” Ehsani says. “Really, we could have that pipe built faster with the help of local labor and put it in place sooner, without having to wait to order it and ship it, and all of that expense.”
If Ehsani’s concept for mobile pipe manufacture using lightweight components takes off, he envisions an industry freed from the shackles of heavy industrial plant. “As a business model, a company that wants to get into pipeline manufacturing with one of these mobile trucks could have a factory anywhere in the world,” he said. “You could be doing a job in Hawaii today and next week be working in Panama. You’re no longer limited by where your factory is.”
QuakeWrap president Mo Ehsani, professor emeritus of civil engineering at the University of Arizona, demonstrates carbon laminate honeycomb pipe sections of various sizes built at his facility in Tucson, Ariz.
