Like tiny ships finding port in a storm, carbon atoms dock with the greater island of graphene in a predictable manner. But until recent research by scientists at Rice University, nobody had the tools to make that kind of prediction.
Electric current shoots straight across a sheet of defect-free graphene with almost no resistance, a feature that makes the material highly attractive to engineers who would use it in things like touchscreens and other electronics, said Rice theoretical physicist Boris Yakobson.
Abstract The morphology of graphene is crucial for its applications, yet an adequate theory of its growth is lacking: It is either simplified to a phenomenological-continuum level or is overly detailed in atomistic simulations, which are often intractable. Here we put forward a comprehensive picture dubbed nanoreactor, which draws from ideas of step-flow crystal growth augmented by detailed first-principles calculations. As the carbon atoms migrate from the feedstock to catalyst to final graphene lattice, they go through a sequence of states whose energy levels can be computed and arranged into a step-by-step map. Analysis begins with the structure and energies of arbitrary edges to yield equilibrium island shapes. Then, it elucidates how the atoms dock at the edges and how they avoid forming defects. The sequence of atomic row assembly determines the kinetic anisotropy of growth, and consequently, graphene island morphology, explaining a number of experimental facts and suggesting how the growth product can further be improved. Finally, this analysis adds a useful perspective on the synthesis of carbon nanotubes and its essential distinction from graphene.
To examine exactly what happens at the atomic level, Yakobson and his Rice colleagues took a close look at the now-common process called chemical vapor deposition (CVD), in which a carbon source heated in a furnace is exposed to a metal catalyst to form graphene, a single-atom layer of pure carbon.
Yakobson, Rice’s Karl F. Hasselmann Professor of Mechanical Engineering and Materials Science and professor of chemistry, and his colleagues calculated the energies of individual atoms as they accrete to form graphene at the “nanoreactor” dock where the carbon vapor and catalyst meet. With the help of theories long applied to crystal growth, they determined that, at equilibrium, some patterns of graphene are more likely to form than others depending on the catalyst used.
One hitch has been that the edge of a graphene sheet dictates how — or even if — current may proceed to an electrode. Grain boundaries — transitions in the hexagons’ angles that appear when islands of graphene merge during growth — can also derail electrons. Yakobson said these edges and boundaries determine the sheet’s overall electronic, mechanical and magnetic properties, so knowing the conditions under which graphene would favor edges that look like zigzags or armchairs – or some angle in between – is important to researchers who want to grow the material for use in electronic components.
Yakobson and his co-authors, research associate Vasilii Artyukhov and graduate student Yuanyue Liu, drew upon their knowledge of crystal growth for their nanoreactor theory. They present a comprehensive model of how atoms migrate from the feedstock – usually a carbon-rich mist in a CVD furnace (and sometimes, famously, a cookie) – to the catalyst and finally to the graphene lattice.
“Owing to the talents and efforts of materials chemists, graphene now grows like mold on almost anything, and from almost any feedstock,” Yakobson said. “But how it looks and the shape it takes is hard to understand or predict.
“If you spill a little water on a flat, horizontal table, it will form a little puddle of circular shape, because water is isotropic – all directions are identical, and a circle has the smallest perimeter and therefore the lowest-energy shape,” he said.
But on the nanoscale, carbon atoms don’t always act like water. “When carbon is ‘spilled’ on metal, things get more complicated,” he said. “Different directions dictate different physical properties, and as a result, graphene’s shape can be a polygon or a star or a flower.”
That sounds like the way a crystal grows, a property not lost on the researchers.

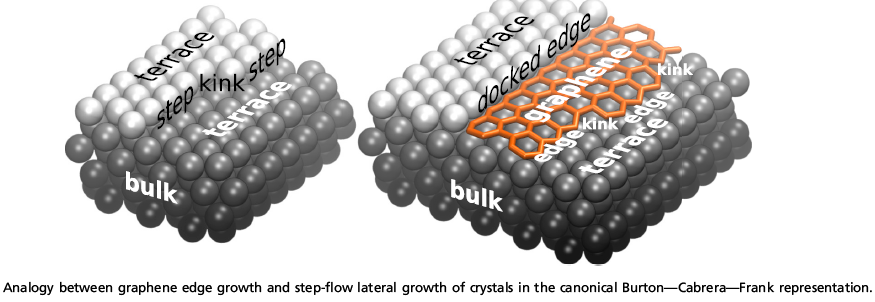

“Despite the huge amount of research being done on graphene all over the world, almost nobody so far has treated graphene synthesis as a crystal growth process and taken advantage of the rich theoretical tool set developed in mid-20th century for semiconductor technology,” Artyukhov said. “Crystal growth theory is a large and established field of science, and there are many more concepts that can be applied to graphene synthesis beyond the first steps outlined in our work.”
The ultimate shape of graphene depends on the subtle interplay of energies and speed of growth. Like water, atoms take the path of least resistance, and that path can change due to slight temperature changes and variations in the carbon vapor density.
“As carbon is added in CVD growth, different sides advance with different speeds,” Yakobson said.
The team used density functional theory to calculate the formation of graphene for all possible edge orientations on various catalysts, including nickel, iron, copper and cobalt. They found the energy levels of atoms can be mapped, step by step, as they leave the vapor and join the lattice at a nanoreactor.
A sheet of graphene starts to form when the first few carbon atoms attach to the catalyst and establish a nucleus around which atoms continue to settle. The graphene grows in rows as new atoms are added, but the rows don’t have straight edges. Some have a zigzag pattern, others form a more complex shape that scientists call armchair. The shape of the edge pattern is dictated by the most efficient use of energy. The Rice team found that zigzag edges face a high-energy barrier at the start of a new row, but the rest of the row’s atoms fall into line quickly and easily. For armchairs, the initial barrier is smaller but remains the same for every subsequent atom that docks.
Skewed edges – in between zigzag and armchair – grow fastest of all, because they have the smallest energy barrier to overcome to start or complete a row, Liu said. Also interesting, he said, is the finding that carbon vapor with atom pairs called dimers might prompt faster and better-quality graphene growth.
The researchers found the lagging zigzag edges are a bottleneck that, independent of the metal substrate, helps determine the overall shape of a graphene bloom. Other kinetic factors can also lead to variations that produce stars, flowers or asymmetric shapes.
The researchers were surprised to find that open-pentagon armchair edges are the most likely growth pattern under equilibrium on iron, cobalt and nickel, while zigzag edges were especially pronounced on a copper catalyst. They also found mathematical evidence that certain defects, in which five- and seven-atom polygon pairs replace adjacent hexagons, are unlikely to form except in a vacuum, an unrealistic scenario for graphene growth. That puts the new theory in line with Yakobson’s previous work to show how unlikely defects are to form when growing carbon nanotubes.
Yakobson said the theory advances on one the carbon-growth community considers canonical — the vapor-liquid-solid paradigm — by getting right down to the smallest details.
