Doped graphite may superconduct at up to 230 degrees celsius

Nature – Researchers in Germany have claimed a breakthrough: a material that can act as a superconductor — transmit electricity with zero resistance — at room temperature and above.

Pablo Esquinazi and his colleagues at the University of Leipzig report that flakes of humble graphite soaked in water seem to continue superconducting at temperatures of greater than 100 °C. Even Esquinazi admits that the claim “sounds like science fiction”, but the work has been published in the peer-reviewed journal Advanced Materials, and other physicists contacted by Nature say that the results, although tentative, merit further scrutiny.

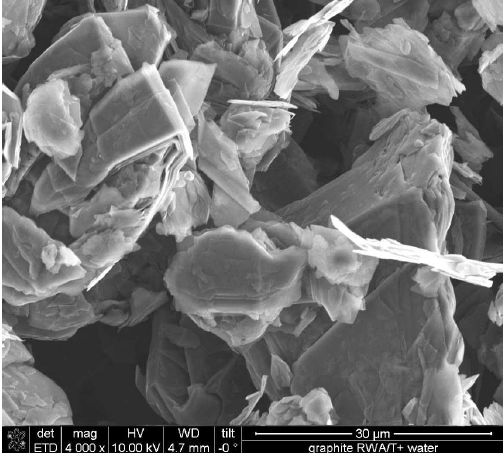

Magnification of the water treated graphite grains

This is following up on an article from one week ago about evidence of room temperature superconductivity in water treated graphite

Graphite, which consists of layers of carbon atoms arranged in hexagonal lattices, can superconduct when doped with elements that provide it with additional free electrons. Calcium graphite, for example, superconducts at up to 11.5 kelvin (about -260 °C)2, and theorists have predicted that temperatures of up to 60 kelvin could be reached if enough free electrons were available.

Esquinazi’s team speculates that high concentrations of electrons form at the interfaces between neighbouring thin segments of graphite. Having already observed superconductivity at more than 100 kelvin at the interfaces within an artificial type of bulk graphite known as pyrolytic graphite3, the researchers wondered whether they could reach even higher temperatures by doping flakes of graphite powder.

The first dopant they tried was ordinary water. They got lucky. They placed 100 milligrams of pure graphite powder made up of flakes a few hundredths of a millimetre long and tens of nanometres thick into 20 millilitres of distilled water. After stirring the mixture for around 23 hours, they filtered out the powder and then dried it overnight at 100 °C. They found that after being placed in a magnetic field, each sample would remain slightly magnetized after the field was removed.

Esquinazi says that this tiny residual magnetization is a sign of either superconductivity or ordinary ferromagnetism. To find out whether they were seeing the former, his team investigated how the magnetization varied with the strength of the applied field and with temperature. The resultant plots were very similar to those for the first high-temperature oxide superconductors, discovered in the 1980s.

Esquinazi concedes that his evidence is “tantalizing” rather than watertight. For one thing, his group has not been able to show that its samples actually conduct electricity with zero resistance. The researchers tried to do this by compressing the soaked powder into pellets to force the grains into electrical contact, but found that this caused the superconducting effect to disappear. Also, they have not been able to prove that the magnetic fields are absent from the interior of the flakes — a fundamental characteristic of superconductors.

In addition, the samples do not lose their apparent superconductivity as they heat up. The team reports that the superconducting state remained at temperatures up to about 400 kelvin, or around 130 °C, and that a simple extrapolation of the data indicates an upper limit of around 1,000 kelvin. Esquinazi says that since writing the paper, the team has in fact observed signs of superconductivity up to 500 kelvin (230 degrees celsius), but that at this point the heat starts to degrade the samples, altering their magnetization and making it difficult to observe the transition to a non-superconducting state.

Advanced Materials – Can Doping Graphite Trigger Room Temperature Superconductivity? Evidence for Granular High-Temperature Superconductivity in Water-Treated Graphite Powder

ABSTRACT – Granular superconductivity in powders of small graphite grains (several tens of micrometers) is demonstrated after treatment with pure water. The temperature, magnetic field and time dependence of the magnetic moment of the treated graphite powder provides evidence for the existence of superconducting vortices with some similarities to high-temperature granular superconducting oxides but even at temperatures above 300 K. Room temperature superconductivity in doped graphite or at its interfaces appears to be possible.

9 pages of supporting material
