Researchers at the Wyss Institute for Biologically Inspired Engineering at Harvard University have created more than 100 three-dimensional (3D) nanostructures using DNA building blocks that function like Lego® bricks — a major advance from the two-dimensional (2D) structures the same team built a few months ago.
In effect, the advance means researchers just went from being able to build a flat wall of Legos®, to building a house. The new method, featured as a cover research article in the 30 November issue of Science, is the next step toward using DNA nanotechnologies for more sophisticated applications than ever possible before, such as “smart” medical devices that target drugs selectively to disease sites, programmable imaging probes, templates for precisely arranging inorganic materials in the manufacturing of next generation computer circuits, and more.
The nanofabrication technique, called “DNA-brick self-assembly,” uses short, synthetic strands of DNA that work like interlocking Lego® bricks. It capitalizes on the ability to program DNA to form into predesigned shapes thanks to the underlying “recipe” of DNA base pairs: A (adenosine) only binds to T (thymine) and C (cytosine) only binds to G (guanine).

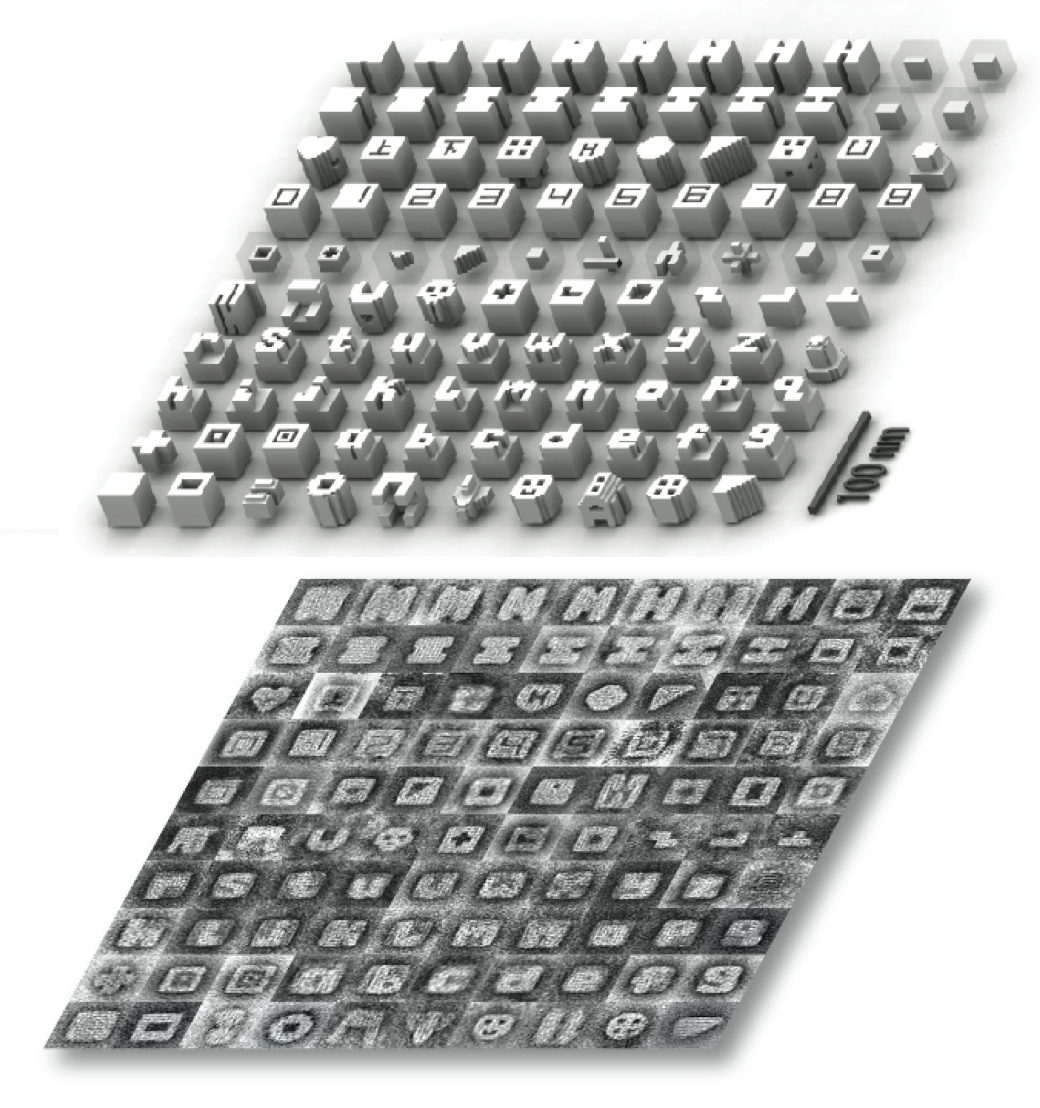

Computer-generated 3D models (left) and corresponding 2D projection microscopy images (right) of nanostructures self-assembled from synthetic DNA strands called DNA bricks. A master DNA brick collection defines a 25-nanometer cubic “molecular canvas” with 1000 voxels. By selecting subsets of bricks from this canvas, Ke et al. constructed a panel of 102 distinct shapes exhibiting sophisticated surface features as well as intricate interior cavities and tunnels. These nanostructures may enable diverse applications ranging from medicine to nanobiotechnology and electronics. [Image Credit: Yonggang Ke, Wyss Institute, Harvard University.]
Earlier this year, the Wyss team reported in Nature how they could create a collection of 2D shapes by stacking one DNA brick (42 bases in length) upon another.
But there’s a “twist” in the new method required to build in 3D.
The trick is to start with an even smaller DNA brick (32 bases in length), which changes the orientation of every matched-up pair of bricks to a 90 degree angle — giving every two Legos® a 3D shape. In this way, the team can use these bricks to build “out” in addition to “up,” and eventually form 3D structures, such as a 25-nanometer solid cube containing hundreds of bricks. The cube becomes a “master” DNA “molecular canvas”; in this case, the canvas was comprised of 1000 so-called “voxels,” which correspond to eight base-pairs and measure about 2.5 nanometers in size – meaning this is architecture at its tiniest.
The master canvas is where the modularity comes in: by simply selecting subsets of specific DNA bricks from the large cubic structure, the team built 102 3D structures with sophisticated surface features, as well as intricate interior cavities and tunnels. “This is a simple, versatile and robust method,” says Peng Yin, Ph.D., Wyss core faculty member and senior author on the study.
Another method used to build 3D structures, called DNA origami, is tougher to use to build complex shapes, Yin said, because it relies on a long “scaffold” strand of DNA that folds to interact with hundreds of shorter “staple” strands – and each new shape requires a new scaffold routing strategy and hence new staples. In contrast, the DNA brick method does not use any scaffold strand and therefore has a modular architecture; each brick can be added or removed independently.
“We are moving at lightning speed in our ability to devise ever more powerful ways to use biocompatible DNA molecules as structural building blocks for nanotechnology, which could have great value for medicine as well as non-medical applications,” says Wyss Institute Founding Director Don Ingber, M.D., Ph.D.
The research team led by Yin, who is also an assistant professor of systems biology at Harvard Medical School (HMS), included Wyss Postdoctoral Fellow Yonggang Ke, Ph.D., and Wyss Graduate Student Luvena Ong. Another contributor was Wyss Core Faculty member William Shih, Ph.D., who also holds appointments at HMS and the Dana-Farber Cancer Institute. Visit Molecular-systems.net to learn more about the team’s work.
The nanofabrication technique, called “DNA-brick self-assembly,” uses short, synthetic strands of DNA that work like interlocking Lego® bricks. It capitalizes on the ability to program DNA to form into predesigned shapes thanks to the underlying “recipe” of DNA base pairs. This animation accurately shows how the DNA strands self assemble to build a structure
Wyss Institute researchers have created more than 100 three-dimensional nanostructures using DNA building blocks that function like Lego® bricks. This animation illustrates the process used to build these structures.
