Printing biomaterials out of thin air, deep sleep transfer to Mars and plasmonic thruster arrays

More of the new phase 1 selections for NASA Innovative advanced concepts.

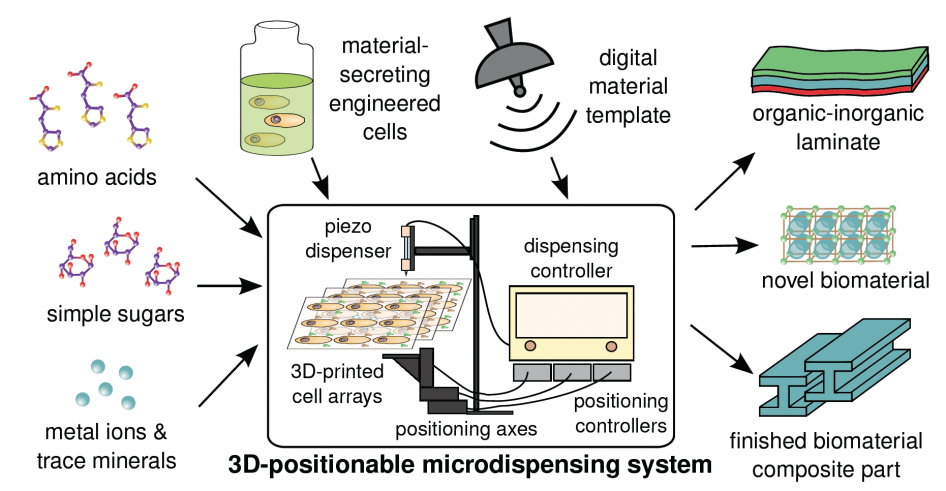

Biomaterials out of thin air: in situ, on-demand printing of advanced biocomposites

Imagine being able to print anything from tools and composite building materials to food and human tissues. Imagine being on Mars with the ability to replace any broken part, whether it’s a part of your spacesuit, your habitat, or your own body. We propose a technique that would allow just that. By printing 3D arrays of cells engineered to secrete the necessary materials, the abundant in situ resources of atmosphere and regolith become organic, inorganic, or organic-inorganic composite materials. Such materials include novel, biologically derived materials not previously possible to fabricate.

Torpor Inducing Transfer Habitat For Human Stasis To Mars

The idea of suspended animation for interstellar human spaceflight has often been posited as a promising far-term solution for long-duration spaceflight. A means for full cryo-preservation and restoration remains a long way off still. However, recent medical progress is quickly advancing our ability to induce deep sleep states (i.e. torpor) with significantly reduced metabolic rates for humans over extended periods of time. NASA should leverage these advancements for spaceflight as they can potentially eliminate a number of very challenging technical hurdles, reduce the IMLEO for the system, and ultimately enable feasible and sustainable missions to Mars.

SpaceWorks proposes the design of a torpor-inducing Mars transfer habitat and an architectural-level assessment to fully characterize the impact to Mars exploration.

The habitat is envisioned as a very small, pressurized module that is docked around a central node/airlock permitting direct access to the Mars ascent/descent vehicle and Earth entry capsule by the crew. We believe the crew habitat mass can be reduced to only 5-7 mt (for a crew of 4-6), compared to 20-50 mt currently. The total habitat module volume would be on the order of 20 m3, compared to 200 m3 for most current designs.

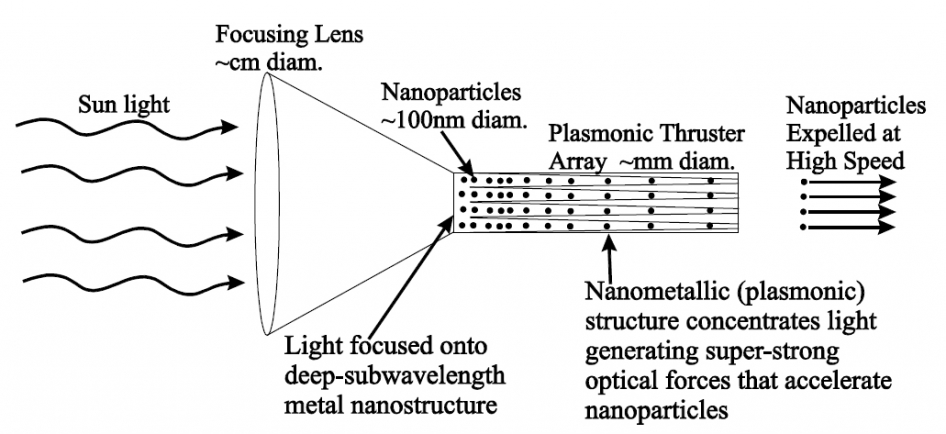

Plasmonic thruster arrays

The full potential of small spacecraft remains untapped because they lack maneuverability. Plasmonic force propulsion provides attitude control capability for small spacecraft with no power penalty and minimal mass and volume penalty. This creates new capabilities for small spacecraft enabling NASA science and exploration missions that were previously impossible. One of NASA’s strategic goals is expanding scientific understanding of the Earth and the universe. NASA envisions a broad class of scientific missions where extremely fine pointing and positioning of spacecraft is required, such as a single Earth observing spacecraft, deployable x-ray telescopes, exoplanet observatories, and constellations of spacecraft for Earth and deep space observations. In recognizing this, the National Research Council emphasized the need for micro-propulsion for extremely fine pointing and positioning of micro-satellites for astrophysics missions.

Within the context of these types of missions, we propose to assess the ability of plasmonic force propulsion to advance the state-of-the-art. We propose to numerically simulate plasmonic force fields with asymmetric/gradient geometry and relevant solar light constraints, predict nanoparticle velocity, mass flow rate, and resulting propulsion performance (thrust, specific impulse), and evaluate spacecraft position control resolution and pointing precision enabled by plasmonic propulsion. We will compare our results with state-of-the-art thrusters (e.g., colloid/electrospray electric propulsion) and torquers (e.g., reaction wheels). We will also assess the feasibility of plasmonic propulsion to meet and/or exceed the stringent demands of future NASA missions.

Our team is composed of experts in the fields fundamental to the physics and application of the concept: plasmonics and space propulsion. The proposed plan of work can be achieved within the proposed schedule because the proposed tasks build upon existing models and simulation tools already available to us. While the focus of the project is plasmonics for space propulsion, the proposed research will have wider application and relevance to optical nanotechnology with many non-aerospace spin-offs, such as plasmonic solar cells, thermoplasmonics for cancer thermal therapy, compact biological sensors, and photonic integrated circuits for optical communications. Plasmonics is an exploding new field of science and technology that is rapidly impacting every facet of optics and photonics, and is predicted to be one of the highest impact fields of the 21st century.
