No methods currently exist for the early detection of Alzheimer’s disease, which affects one out of nine people over the age of 65. Now, an interdisciplinary team of Northwestern University scientists and engineers has developed a noninvasive MRI approach that can detect the disease in a living animal. And it can do so at the earliest stages of the disease, well before typical Alzheimer’s symptoms appear.
Led by neuroscientist William L. Klein and materials scientist Vinayak P. Dravid, the research team developed an MRI (magnetic resonance imaging) probe that pairs a magnetic nanostructure (MNS) with an antibody that seeks out the amyloid beta brain toxins responsible for onset of the disease. The accumulated toxins, because of the associated magnetic nanostructures, show up as dark areas in MRI scans of the brain.
This ability to detect the molecular toxins may one day enable scientists to both spot trouble early and better design drugs or therapies to combat and monitor the disease. And, while not the focus of the study, early evidence suggests the MRI probe improves memory, too, by binding to the toxins to render them “handcuffed” to do further damage.
Fluorescent amyloid beta oligomers (green), bound to cultured hippocampal neurons, were detected with greater than 90 percent accuracy by the magnetic nanostructure probe (red). (Adapted from Viola et al., Nature Nanotechnology, 2014.)
Nature Nanotechnology – Towards non-invasive diagnostic imaging of early-stage Alzheimer’s disease
“We have a new brain imaging method that can detect the toxin that leads to Alzheimer’s disease,” said Klein, who first identified the amyloid beta oligomer in 1998. He is a professor of neurobiology in the Weinberg College of Arts and Sciences.
“Using MRI, we can see the toxins attached to neurons in the brain,” Klein said. “We expect to use this tool to detect this disease early and to help identify drugs that can effectively eliminate the toxin and improve health.”
With the successful demonstration of the MRI probe, Northwestern researchers now have established the molecular basis for the cause, detection by non-invasive MR imaging and treatment of Alzheimer’s disease. Dravid introduced this magnetic nanostructure MRI contrast enhancement approach for Alzheimer’s following his earlier work utilizing MNS as smart nanotechnology carriers for targeted cancer diagnostics and therapy. (A MNS is typically 10 to 15 nanometers in diameter; one nanometer is one billionth of a meter.)
Details of the new Alzheimer’s disease diagnostic are published today (Dec. 22) by the journal Nature Nanotechnology. Klein and Dravid are co-corresponding authors.
The emotional and economic impacts of Alzheimer’s disease are devastating. This year, the direct cost of the disease in the United States is more than $200 billion, according to the Alzheimer’s Association’s “2014 Alzheimer’s Disease Facts and Figures.” By the year 2050, that cost is expected to be $1.1 trillion as baby boomers age. And these figures do not account for the lost time of caregivers.
This new MRI probe technology is detecting something different from conventional technology: toxic amyloid beta oligomers instead of plaques, which occur at a stage of Alzheimer’s when therapeutic intervention would be very late. Amyloid beta oligomers now are widely believed to be the culprit in the onset of Alzheimer’s disease and subsequent memory loss.
In a diseased brain, the mobile amyloid beta oligomers attack the synapses of neurons, destroying memory and ultimately resulting in neuron death. As time progresses, the amyloid beta builds up and starts to stick together, forming the amyloid plaques that current probes target. Oligomers may appear more than a decade before plaques are detected.
“Non-invasive imaging by MRI of amyloid beta oligomers is a giant step forward towards diagnosis of this debilitating disease in its earliest form,” said Dravid, the Abraham Harris Professor of Materials Science and Engineering at the McCormick School of Engineering and Applied Science.
There is a major need for what the Northwestern research team is doing — identifying and detecting the correct biomarker for new drug discovery. Despite extraordinary efforts, no effective drugs exist yet for Alzheimer’s disease.
“This MRI method could be used to determine how well a new drug is working,” Dravid said. “If a drug is effective, you would expect the amyloid beta signal to go down.”
The nontoxic MRI probe was delivered intranasally to mouse models with Alzheimer’s disease and control animals without the disease. In animals with Alzheimer’s, the toxins’ presence can be seen clearly in the hippocampus in MRI scans of the brain. No dark areas, however, were seen in the hippocampus of the control group.
The ability to detect amyloid beta oligomers, Klein said, is important for two reasons: amyloid beta oligomers are the toxins that damage neurons, and the oligomers are the first sign of trouble in the disease process, appearing before any other pathology.
Klein, Dravid and their colleagues also observed that the behavior of animals with Alzheimer’s improved even after receiving a single dose of the MRI probe.
“While preliminary, the data suggests the probe could be used not only as a diagnostic tool but also as a therapeutic,” said Kirsten L. Viola, a co-first author of the study and a research manager in Klein’s laboratory.
One way to image the molecular pathology in Alzheimer’s disease is by positron emission tomography using probes that target amyloid fibrils. However, these fibrils are not closely linked to the development of the disease. It is now thought that early-stage biomarkers that instigate memory loss are composed of Aβ oligomers. Here, we report a sensitive molecular magnetic resonance imaging contrast probe that is specific for Aβ oligomers. We attach oligomer-specific antibodies onto magnetic nanostructures and show that the complex is stable and binds to Aβ oligomers on cells and brain tissues to give a magnetic resonance imaging signal. When intranasally administered to an Alzheimer’s disease mouse model, the probe readily reached hippocampal Aβ oligomers. In isolated samples of human brain tissue, we observed a magnetic resonance imaging signal that distinguished Alzheimer’s disease from controls. Such nanostructures that target neurotoxic Aβ oligomers are potentially useful for evaluating the efficacy of new drugs and ultimately for early-stage Alzheimer’s disease diagnosis and disease management.
14 pages of Supplemental information
There is a Google Solve for X proposal for Early Alzheimer’s detection and the benefit of early Alzheimer detection
Problem: 1/3 Americans born today will live to 100. That’s really great but cognitive decline begins at 30 and it’s just a matter of time before dementia develops. Alzheimer’s specifically accounts for 70% of dementia cases and has no treatment. Alzheimer’s costs the US healthcare system $200 Billion dollars today and if no treatment is developed will bankrupt the healthcare system in a short period of time.
Solution: Keith has developed an early diagnostic test for Alzheimer’s that could catch the disease 20 years before it begins damaging cognitive function. The simple test could be widely used at eye exams, allowing 50 or 60 year olds to know if they’re developing Alzheimer’s and to take simple actions that will delay the onset of the disease by 10 to 15 years.

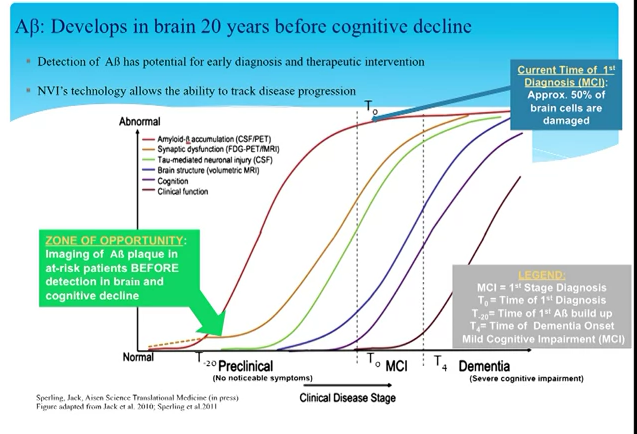

Breakthrough technology that could make it happen: The hallmark of Alzheimer’s is a protein called beta amyloid that begins accumulating in the brain 20 years before the symptoms present themselves. Keith has discovered a way to image these plaques in the back of the retina, which should enable a inexpensive, eye exam to check for the disease.
Curcumin (the yellow Indian spice) can cross the blood brain barrier and can be used to tag the amyloid plaques.
2.5 years ago they used this method to detect Alzheimers in rats via retina imaging.
Checked human cadavers and found that beta amyloid in the back of the retina matched the amyloid in the brain.
They tested on living humans and confirmed it worked and created an index to determine how far along the Alzheimer’s is.

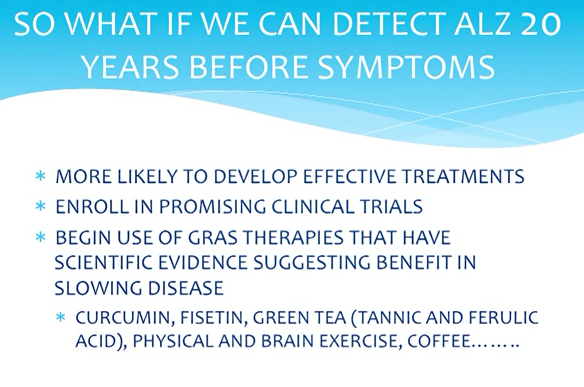

What Early Treatment for Alzheimer’s with Early Detection of Early Stage Disease
Early detection could allow treatments that are ineffective for late stage disease to be more effective on the early stages.
The Retinal test will also be detect if the Almyloid is decreasing to measure which treatments work best.
Solution could save trillions of health dollars and enable people to avoid late stage Alzheimer’s by delaying the disease by 10-20 years and accelerate the development of cures.
