New Nanoscale Programmable Memristive Switches from DARPA

By combining complementary mindsets on the leading edges of electronic and radiofrequency device engineering, a pair of researchers in DARPA’s Young Faculty Award program has devised ultratiny, electronic switches with reprogrammable features resembling those at play in inter-neuron communication. These highly adaptable nanoscale switches can toggle on and off so fast, and with such low loss, they could become the basis of not only computer and memory devices but also multi-function radiofrequency (RF) chips, which users might reprogram on the fly to behave first like a cell-phone’s signal emitter but then, say, as a collision-avoidance radar component or a local radio jammer.

Reconfigurable RF systems like these depend on the availability of minuscule RF switches that can be integrated into chips and whose switching characteristics can be readily reprogrammed to serve different RF functions. So far, however, reconfigurable RF switches have been of limited use because of their performance drawbacks including added noise, size, power consumption, functional instability and lack of durability.

As a step toward overcoming these constraints, two of DARPA’s Young Faculty Award (YFA) recipients, Qiangfei Xia and Joseph Bardin, both Assistant Professors in the Department of Electrical and Computer Engineering at the University of Massachusetts Amherst, teamed up to invent and demonstrate new nanoscale RF switches based on so-called memristor technology. Bardin (in the YFA program since 2011) brought to the duo expertise in reconfigurable RF integrated circuits, while Xia (in the YFA program since 2012) contributed prowess in the design and fabrication of nanoscale memristor devices. Inspired by discussions with their YFA mentor—DARPA’s Microsystems Technology Office Director Bill Chappell—Xia and Bardin combined their strengths to devise what they describe in a recent Nature Communications article as “nanoscale memristive radiofrequency switches.”

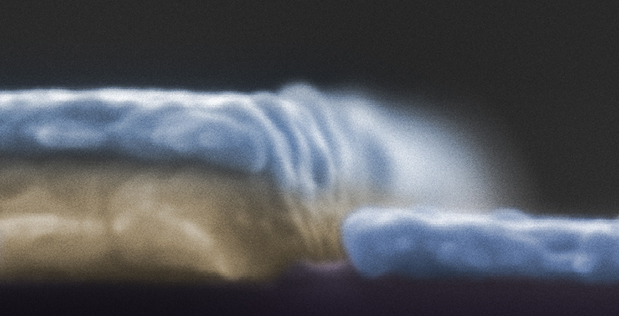

In this scanning electron micrograph of a programmable memristor switch, a pair of gold and silver electrodes is separated by an air gap of only 35 nanometers. Its switching behavior can be reprogrammed by applying a specific voltage across the electrodes that either leads to the formation or rupture of tiny silver filaments between them.

Memristive devices are switches whose ease or difficulty of toggling between on and off states is determined by the history of voltage and/or current applied to the switch structure. That means they have the potential to be programmed to serve a range of purposes by applying specific patterns of charges. The switches that Xia and Bardin are made of two conductive elements separated by a thin dielectric of just 35 nanometers, or about the width of a virus. Changes in applied voltages or currents in these switches trigger the formation or disintegration of conductive filaments between the elements—a process that resembles neuron signal transmission, where similarly tiny gaps are briefly and reversibly bridged by chemical neurotransmitters, allowing electrochemical signals to propagate from one neuron to the next.

“The nanoscale dimensions of these switches, their performance, and the relative simplicity with which they can be integrated into existing chip technology bodes well for inclusion in a new generation of reconfigurable RF chips. These can change from one type of radio to a completely different type without changing the hardware. We can even use one chip set to switch from a communications system to a radar, which are traditionally very different designs,” Chappell said. “The fact that these devices are the brainchildren of an interdisciplinary team adds credence to a longstanding DARPA principle that the intersecting edges of technical fields provide especially fertile ground for innovation. Enabling young faculty at the start of their careers from different backgrounds to collaborate has proven valuable.”
