One inch of composite metal foam can stop high caliber bullets and can be used for light weight radiation shielding

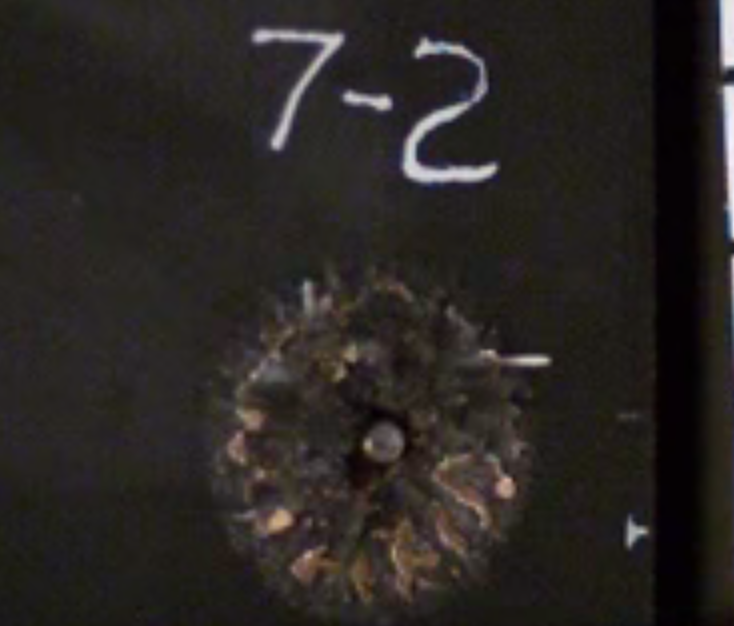

Composite metal foams (CMFs) are tough enough to turn an armor-piercing bullet into dust on impact. Given that these foams are also lighter than metal plating, the material has obvious implications for creating new types of body and vehicle armor – and that’s just the beginning of its potential uses.

“We could stop the bullet at a total thickness of less than an inch, while the indentation on the back was less than 8 millimeters,” Rabiei says. “To put that in context, the NIJ standard allows up to 44 millimeters indentation in the back of an armor.” The results of that study were published in 2015.

But there are many applications that require a material to be more than just incredibly light and strong. For example, applications from space exploration to shipping nuclear waste require a material to be not only light and strong, but also capable of withstanding extremely high temperatures and blocking radiation.

Last year, with support from the Department of Energy’s Office of Nuclear Energy, Rabiei showed that CMFs are very effective at shielding X-rays, gamma rays and neutron radiation. And earlier this year, Rabiei published work demonstrating that these metal foams handle fire and heat twice as well as the plain metals they are made of.

Composite Structures – Ballistic performance of composite metal foams


The application of advance materials to manufacture hard armor systems has led to high performance ballistic protection. Due to its light-weight and high impact energy absorption capabilities, composite metal foams have shown good potential for applications as ballistic armor. A high-performance light-weight composite armor system has been manufactured using boron carbide ceramics as the strike face, composite metal foam processed by powder metallurgy technique as a bullet kinetic energy absorber interlayer, and aluminum 7075 or Kevlar™ panels as backplates with a total armor thickness less than 25 mm. The ballistic tolerance of this novel composite armor system has been evaluated against the 7.62 × 51 mm M80 and 7.62 × 63 mm M2 armor piercing projectiles according to U.S. National Institute of Justice (NIJ) standard 0101.06. The results showed that composite metal foams absorbed approximately 60–70% of the total kinetic energy of the projectile effectively and stopped both types of projectiles with less depth of penetration and backplate deformation than that specified in the NIJ 0101.06 standard guidelines. Finite element analysis was performed using Abaqus/Explicit to study the failure mechanisms and energy absorption of the armor system. The results showed close agreement between experimental and analytical results.

SOURCES – North Carolina State University, Composite Structures Journal, Youtube
