SpaceX 15000 V3 Starlink Direct to Cellphone Satellites

SpaceX submitted FCC filing SAT-LOA-20250916-00282 on September 16, 2025, requesting authorization for up to 15,000 additional low-Earth orbit (LEO) satellites dedicated to enhancing its Direct-to-Cell (DTC) Starlink service.

This filing builds on prior approvals for ~29,988 broadband-focused satellites and leverages spectrum acquired from EchoStar in a $17 billion deal, enabling hybrid satellite-terrestrial networks for ubiquitous mobile connectivity.

All 15,000 Satellites are DTC-Enabled?

Yes, the filing describes these as a dedicated constellation for DTC operations, supporting text, voice, and data to unmodified cellphones using acquired MSS spectrum (e.g., 1.91-1.995 GHz in the US).

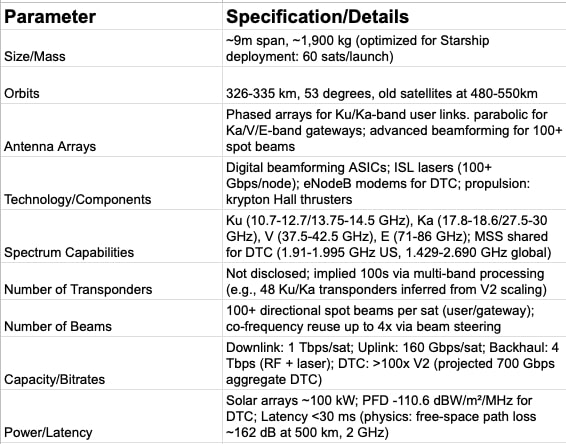

V3 Satellite Specifications: V3 (Gen3) satellites, deployable via Starship, feature massive capacity upgrades: 1 Tbps downlink, 160 Gbps uplink per satellite, and ~4 Tbps combined RF/laser backhaul.

Phased array antennas in Ku/Ka/V/E-bands enable advanced beamforming, but specific transponder/beam counts remain undisclosed in filings.

DTC Share in V3 Constellation: The 15,000 DTC satellites represent ~34% of the total proposed V3 fleet (15,000 / 44,988).
DTC payloads integrate with broadband systems.

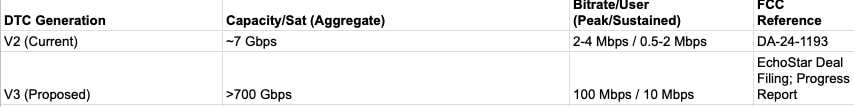

Next-gen DTC offers >100x capacity over V2 DTC (from ~7 Gbps aggregate to projected 700+ Gbps per satellite).

Bitrates target 4G LTE-equivalent (up to 100 Mbps peak, 2-10 Mbps sustained) with global capacity scaling to petabits via constellation density.

Spectrum & Physics Insights: Utilizes MSS bands with power flux density (PFD) up to -110.6 dBW/m²/MHz for reliable propagation to handsets (path loss ~160-170 dB at 340 km).

Beamforming mitigates interference.
Inter-satellite laser links (ISLs) at 100+ Gbps enable efficient routing.

This scales Starlink to eliminate terrestrial dead zones, but raises spectrum congestion risks in L-band. FCC approval could accelerate by mid-2026, pending environmental/orbital debris reviews.

1. Overview of the FCC Filing (SAT-LOA-20250916-00282)
Submit Date: September 16, 2025

Purpose: Modification to add up to 15,000 NGSO satellites for DTC operations, complementing the existing ~29,988 broadband-approved constellation. Builds on EchoStar spectrum acquisition for MSS/FSS hybrid use.

Orbital Altitudes 326-335 km (lower than prior 340 km approvals for <50 ms latency). Inclinations ~53° for global coverage.
Deployment Timeline: Initial tranche post-2026 via Starship; full build-out by 2030.

DTC Capabilities in the Filing


The filing explicitly positions the 15,000 satellites as a dedicated DTC constellation, enabling direct connectivity to unmodified LTE/5G handsets without terrestrial towers.

All satellites will incorporate DTC payloads (eNodeB modems acting as space-based cell towers).


Current DTC fleet (~650+ satellites) supports SMS. This upgrade targets 20x throughput via EchoStar’s 2 GHz AWS-4 spectrum, achieving 4G-equivalent performance.No explicit bitrate/capacity per satellite in this filing. DTC capacity scaling to 100x prior gen via enhanced PFD and beam steering.

Propagation Physics- At 330 km altitude, DTC signals in 2 GHz band face ~160 dB path loss + 10-20 dB atmospheric fade. Phased arrays with 30-40 dBi gain ensure SNR >10 dB for QPSK/64QAM modulation, yielding 2-100 Mbps/user depending on beam sharing (10-100 users/beam).

Spectrum Efficiency – Beamforming enables spatial reuse (SIR >20 dB); ISLs reduce gateway dependency, boosting effective capacity by 50%. V3’s 10x bandwidth vs. V2 Mini addresses Shannon limit bottlenecks in dense deployments.

Overall V3 Fleet: 29,988 broadband + 15,000 DTC = ~44,988 total.

DTC Proportion: 15,000 dedicated DTC satellites (~34% of total). However, filings indicate hybrid payloads: up to 20-30% of broadband V3 sats may include DTC modems for opportunistic cellular offload.

Capacity Projections of Starlink 15,000 sats × 700 Gbps = 10.5 Pbps DTC throughput. This will support over 1 billion users at 10 Mbps average.
