Tesla V4 Supercharging for Fast 1.2 MW Tesla Semi and 500 Kilowatt EV Charging

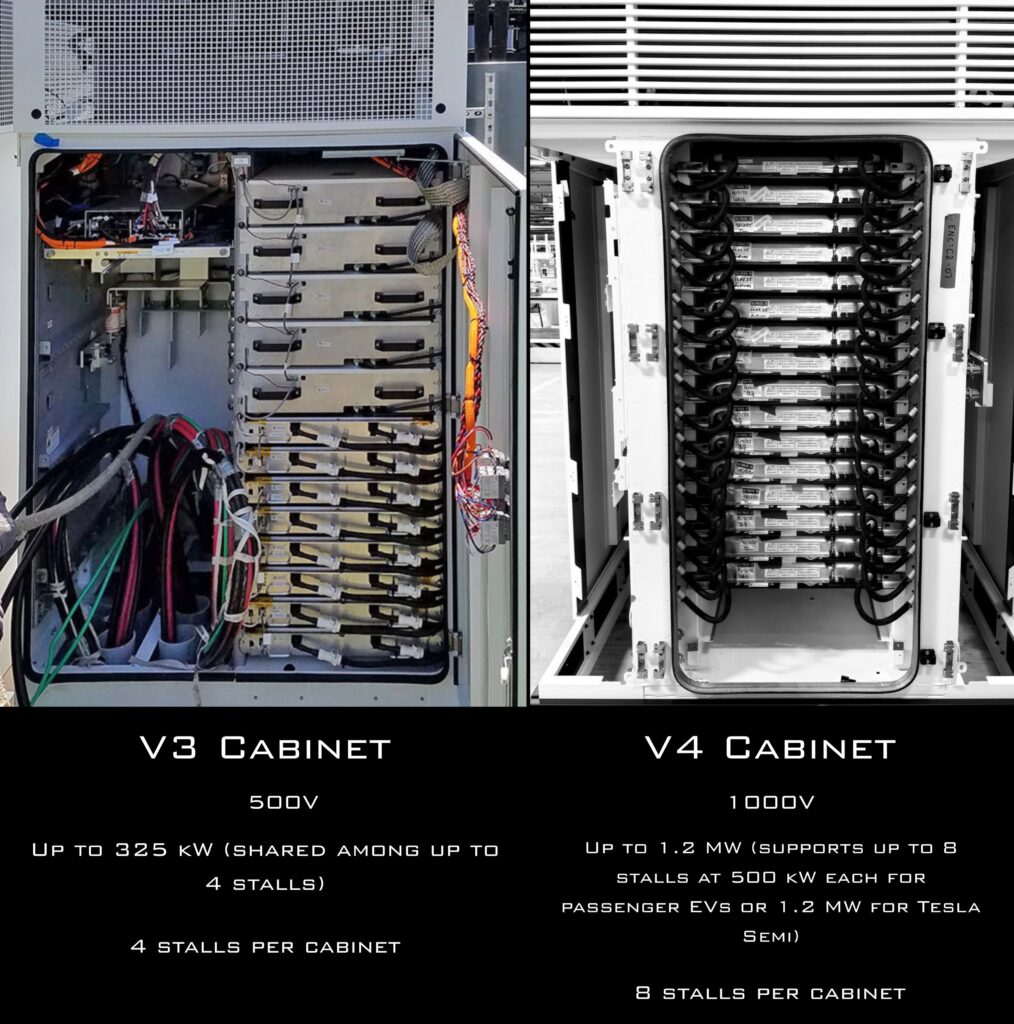

The First Tesla V4 cabinet Supercharger are now live.

They have 0.5 MW, 3X power density and 2X stalls per cabinet.

It takes AC power in and uses 16 trays of power electronics and gives DC power out.

This is the tech that will make 1.2MW charging for Semi, and 0.5 MW charging for cars, ubiquitous around the world.

Higher throughput, higher efficiency, lower cost, faster deployments.

Tesla already had the most reliable and most powerful charging in the world.

This V4 supercharging takes it to another level.

The Tesla V4 Supercharger represents a pivotal advancement in EV charging architecture, specifically tailored to support the high-energy demands of heavy-duty applications like the Tesla Semi while maintaining compatibility with passenger vehicles. At its core, the V4 cabinet is a modular “masterpiece” as described—featuring AC input from the grid, 16 swappable trays of power electronics for DC conversion and distribution, and high-voltage DC output. This design allows for unprecedented scalability: each cabinet can deliver up to 1.2 MW for Semis (enabling a full recharge in under 2 hours for a typical 500-1,000 mile daily range) and 500 kW for cars, doubling the power density of V3 cabinets. Unlike V3’s four-stall limit per cabinet, V4 supports up to eight stalls, reducing civil works, cabling, and land requirements by ~50% per stall while cutting deployment costs. This modularity—trays can be hot-swapped for maintenance or upgrades—ensures 99.9%+ uptime, critical for fleet operations.

From an energy and grid perspective, V4’s integration with Tesla’s Megablock (a pre-assembled 20 MWh AC battery system bundling four Megapacks, medium-voltage transformers, and switchgear) addresses key bottlenecks in wide-scale rollout. Megablock achieves 91% round-trip efficiency at medium voltage (up to 35 kV), enabling “plug-and-play” installation in 23% less time and 40% lower site costs compared to traditional setups.

It buffers peak loads (e.g., 10-20 Semis charging simultaneously at a depot), stabilizing the grid during off-peak imports and exporting stored energy during peaks—potentially offsetting 20-30% of a site’s demand. Medium-voltage transformers (15-35 kV) allow direct substation ties without extensive low-voltage upgrades, slashing interconnection queues from 12-18 months to 3-6 months in constrained areas like California or Texas.

This is transformative for infrastructure: a single Megablock can support 16-20 V4 cabinets, powering a 20-stall Semi depot drawing ~24 MW peak, with daily throughput for 100+ trucks.

For the Tesla Semi specifically, V4 unlocks ubiquity by converging passenger and truck charging networks. Semis require 1.6 kWh/mile efficiency (real-world tests show 1.55 kWh/mile over 4,500 miles), translating to 800-2,000 kWh/day for autonomous 23-hour operations (1,000-1,300 miles at 55 mph average). At 1.2 MW, this equates to 40-100 minutes per charge, allowing depots to cycle trucks 5-6x/day. The US freight market (~3.5 trillion ton-miles/year) could indeed require 3 million Semis for full electrification, as autonomous efficiency (no driver breaks, platooning) boosts utilization 2-3x over diesel rigs, cutting emissions 80%+ and energy costs to $0.10-0.15/kWh off-peak. V4/Megablock combos enable this by deploying “mega-stations” (50+ stalls) along I-80/I-10 corridors, with bidirectional grid services generating revenue to subsidize builds.

Tesla’s ability to upgrade ~70% of existing V3 Superchargers (15,000+ NA stalls as of late 2025) further accelerates rollout. V4 cabinets bolt onto V3 pedestals with minimal trenching (add liquid-cooled cables for 1,000V/615A), enabling 250-500 kW car charging today and Semi retrofits via software/firmware. This leverages the network’s 60,000+ global stalls, avoiding greenfield permitting delays.

Infrastructure Costs: V4 Installs, Upgrades, and Supporting Systems

Based on 2025 data, Tesla’s V4 deployments achieve economies of scale unmatched in the industry. New V4 stall installations average $35,000-$40,000 per stall, including cabinet, pedestal, cabling, and basic civil works—down from V3’s ~$43,000 due to modular trays and shared Megapack components. This covers ~$15,000 for hardware and $20,000-$25,000 for site prep (trenching, permitting). For full sites (e.g., 12-20 stalls), add $200,000-$500,000 in grid ties and land leasing.

Upgrades from V3 to V4 are far cheaper at $15,000-$25,000 per stall, primarily involving cabinet swaps ($10,000) and cable retrofits ($5,000-$10,000), with no major civil works needed on 80%+ of sites. Tesla targets 20-30% annual upgrade rates, saving $10,000-$20,000 per stall vs. new builds.

For Semi-specific infrastructure, costs rise to ~$500/kW installed due to higher power (1.2 MW/stall), equating to $400,000-$600,000 per Megacharger stall (including liquid-cooled high-voltage lines). A 20-stall depot totals $8-12M, but V4 hybrids cut this 30-40% by sharing cabinets. Megablocks add $6-7M per 20 MWh unit ($300-$350/kWh installed, including medium-voltage transformers at $500,000-$1M each), with full-site permitting and interconnection at $100,000-$300,000. Other costs: annual O&M ~$1,000/stall (5% of capex), offset by $0.30-$0.50/kWh revenue. Total network capex for 2026-2028 projections: $8-12B, 20% lower than prior estimates due to V4 efficiencies.

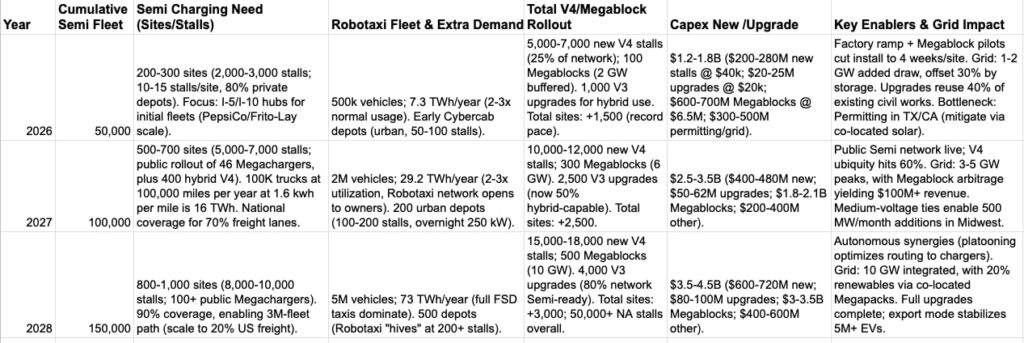

Rollout Projections for 2026-2028: Supporting Semi and Robotaxi Charging

Key assumptions:Semi fleet: Starts at 50,000 units in 2026 (Nevada factory full ramp), cumulative 100k (2027), 150k (2028). Daily energy: 1,600 kWh/truck (1,000 miles at 1.6 kWh/mile, autonomous 23/7 ops).

Robotaxi demand: Unsupervised FSD enables 40,000-60,000 miles/year/vehicle (2-3x normal 15,000-20,000 miles/year private use). Efficiency: 3-4 miles/kWh (0.25-0.333 kWh/mile), yielding 13,300-15,000 kWh/year per car (avg. 14,600 kWh). Fleet scales: 500k vehicles (2026), 2M (2027), 5M (2028).

Total energy: 7.3 TWh/year (2026), 29.2 TWh (2027), 73 TWh (2028)—primarily overnight/urban depots at 250-500 kW.

Fleet scales aggressively: 500k vehicles (2026, mix of owner-opted Model 3/Y + initial Cybercab), 2M (2027), 5M (2028).

Per-vehicle energy: 30-50 kWh/day extra (2x utilization), totaling 20-30 TWh/year network-wide by 2028.

Infrastructure baseline: NA Supercharger network at 20,000 stalls end-2025 (10% YoY growth to date). V4 adoption: 50% of new builds. Megachargers start private, go public 2027. Upgrades: 20-30% of V3 sites/year.

Constraints/mitigations: Grid queues eased by Megablock’s medium-voltage step-up. permitting 6-9 months/site. Costs as above. revenue offsets 20-30% of capex.

Total demand: Semis add 8-24 TWh/year. Robotaxis add 7-73 TWh/year.

For 100 TWh/year Total capacity increase: 24.82 GW (solar) + 9.56 GW (natural gas) ≈ 34 GW. If it was a mix. Solar has 24% capacity factor and gas has about 60%.

Projections focus on feasible V4/Megablock deployments to achieve 95%+ coverage for high-utilization fleets (e.g., 300-mile radius access). Rollout accelerates via modular factories (Shanghai/Lathrop scaling Megapacks 2x/year) and NACS adoption (doubling utilization).

This trajectory positions Tesla to capture 20-30% of NA freight by 2028, with V4/Megablock reducing total infrastructure capex to $8-12B (vs. $25B+ without modularity). Risks include supply chain (lithium/copper) and regulatory (FSD approval), but grid resilience via storage makes it viable—potentially adding 1-2% to US peak demand while cutting freight CO2 by 15-20 Mt/year.
