Purdue Researchers Make Progress to a Viable Lithium Metal Battery

Purdue researchers have demonstrated that low concentration ether-based electrolyte can successfully endure the long-term high voltage (4.3 V) operation of practical LMB (lithium Metal Battery) under industry viable configurations, when using the highly nonpolar dipropyl ether as the electrolyte solvent.

From the perspective of fundamental research on new LMB technologies, it is critical to meticulously develop suitable liquid electrolyte chemistry that works with promising anodes and cathodes.

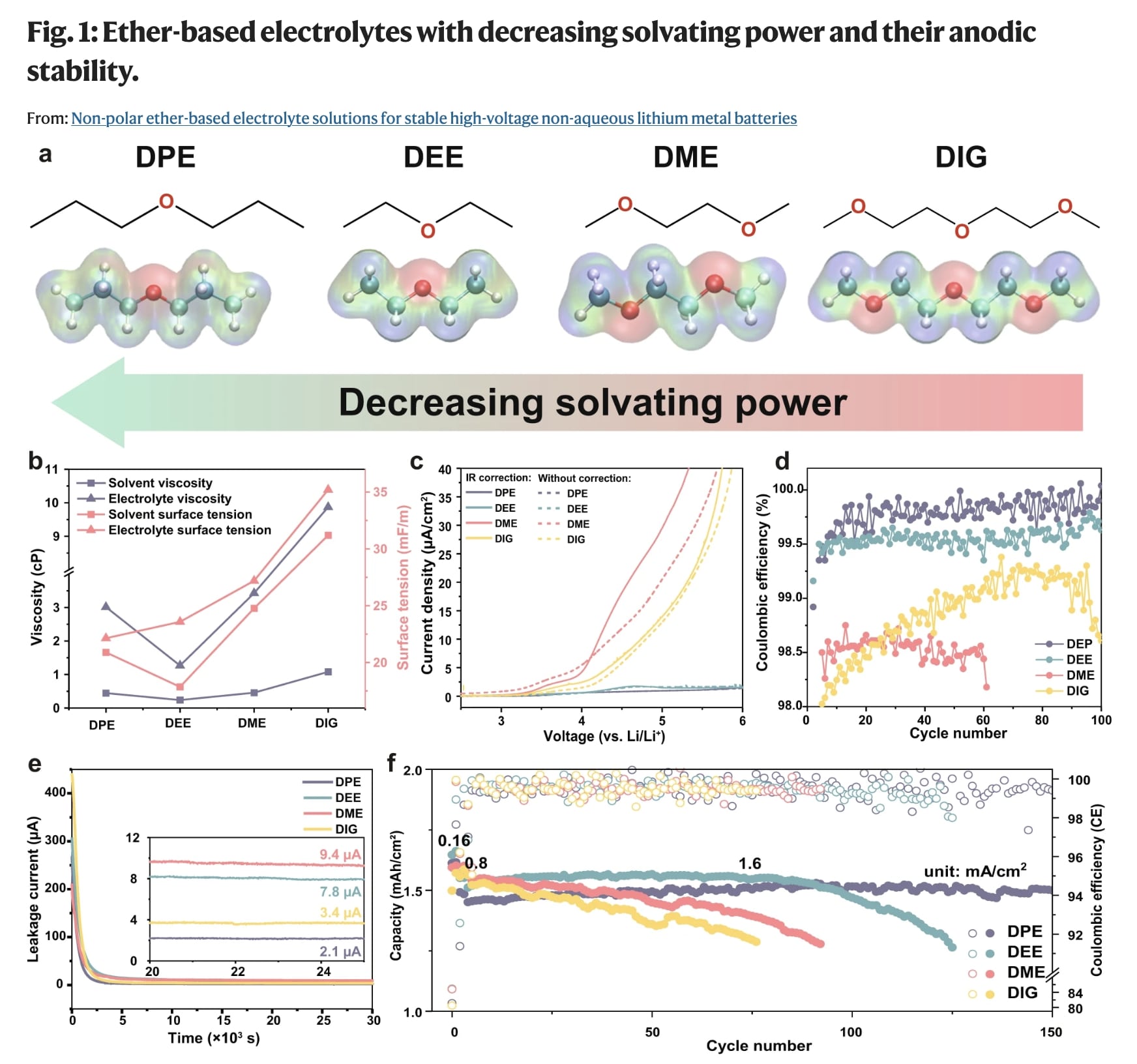

They demonstrated a strategy for improving high-voltage compatibility of dilute (<3 M) ether-based lithium electrolytes by using the highly nonpolar ether solvent. The low concentration LiFSI-based electrolyte with nonfluorinated DPE solvent was shown to extend the high voltage (4.3 V) operation of LMBs with commercially viable battery configurations (high loading cathode, controlled anode, and electrolyte amount). Due to the weak coordination ability to Li+ and the ion aggregation enriched Li solvation behavior, DPE tunes the relative HOMO energy level of aggregated solvate species and rearranges the decomposition order of electrolyte components at cathode surface. The preferential degradation of ion aggregates circumvents the oxidation of free ether molecules and leads to a robust anion-derived CEI layer. The aggregated Li solvation structure displaces the ether molecules in the EDL, leading to solvent-deficient interfacial regime and synergistically enhances ion transfer process. Compared to the conventional electrolyte design strategies, stabilizing the positive electrode interface enables a CE of 99.90% by using the DPE electrolyte does not require diminishing the free ether molecules or improving the thermodynamic stability of the electrolyte. The Li||NCM811 coin cell retains 82% capacity after 220 cycles at 1 mA/cm2, and the practical pouch cell also demonstrates 150 stable cycles with 74.1% retention (0.33 and 1 mA/cm2 charge and discharge, respectively). This study suggests a way to overcome the poor solvent stability of ether-based electrolytes with high-voltage cathodes by modulating the locally controlled and dynamically changing solvation structure. We established an effective electrolyte design that can construct kinetically controlled interface to enhance LMB operations. The results also provide insights of understanding the CEI formation process and tuning its chemical compositions. Nature Communications – Non-polar ether-based electrolyte solutions for stable high-voltage non-aqueous lithium metal batteries

Abstract
The electrochemical instability of ether-based electrolyte solutions hinders their practical applications in high-voltage Li metal batteries. To circumvent this issue, here, we propose a dilution strategy to lose the Li+/solvent interaction and use the dilute non-aqueous electrolyte solution in high-voltage lithium metal batteries. We demonstrate that in a non-polar dipropyl ether (DPE)-based electrolyte solution with lithium bis(fluorosulfonyl) imide salt, the decomposition order of solvated species can be adjusted to promote the Li+/salt-derived anion clusters decomposition over free ether solvent molecules. This selective mechanism favors the formation of a robust cathode electrolyte interphase (CEI) and a solvent-deficient electric double-layer structure at the positive electrode interface. When the DPE-based electrolyte is tested in combination with a Li metal negative electrode (50 μm thick) and a LiNi0.8Co0.1Mn0.1O2-based positive electrode (3.3 mAh/cm2) in pouch cell configuration at 25 °C, a specific discharge capacity retention of about 74% after 150 cycles (0.33 and 1 mA/cm2 charge and discharge, respectively) is obtained.
