DARPA GoQbot a fast caterpillar robot

Researchers have been examining the diverse behaviors of caterpillars to find solutions for the new generation of search and rescue soft robots.

Despite their extreme flexibility and adaptability, current soft-bodied robots are often limited by their slow speed, leading the researchers to turn to terrestrial soft-bodied animals for inspiration.

Some caterpillars have the extraordinary ability to rapidly curl themselves into a wheel and propel themselves away from predators. This highly dynamic process, called ballistic rolling, is one of the fastest wheeling behaviors in nature.

Researchers from Tufts University, Massachusetts, saw this as an opportunity to design a robot that mimics this behavior of caterpillars and to develop a better understanding of the mechanics behind ballistic rolling.

Bioinspiration and Biomimetics – GoQBot: a caterpillar-inspired soft-bodied rolling robot

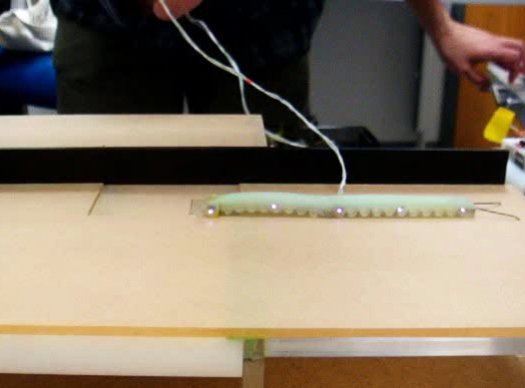

To simulate the movement of a caterpillar, the researchers designed a 10cm long soft-bodied robot, called GoQBot, made out of silicone rubber and actuated by embedded shape memory alloy coils. It was named GoQBot as it forms a “Q” shape before rolling away at over half a meter per second.

The GoQBot was designed to specifically replicate the functional morphologies of a caterpillar, and was fitted with 5 infrared emitters along its side to allow motion tracking using one of the latest high speed 3D tracking systems. Simultaneously, a force plate measured the detailed ground forces as the robot pushed off into a ballistic roll.

In order to change its body conformation so quickly, in less than 100 ms, GoQBot benefits from a significant degree of mechanical coordination in ballistic rolling. Researchers believe such coordination is mediated by the nonlinear muscle coupling in the animals.

The researchers were also able to explain why caterpillars don’t use the ballistic roll more often as a default mode of transport; despite its impressive performance, ballistic rolling is only effective on smooth surfaces, demands a large amount of power, and often ends unpredictably.

Not only did the study provide an insight into the fascinating escape system of a caterpillar, it also put forward a new locomotor strategy which could be used in future robot development.

Many modern robots are modelled after snakes, worms and caterpillars for their talents in crawling and climbing into difficult spaces. However, the limbless bodies severely reduce the speeds of the robots in the opening. On the other hand, there are many robots that employ a rolling motion in order to travel with speed and efficiency, but they struggle to gain access to difficult spaces.

Lead author Huai-Ti Lin from the Department of Biology, Tufts University, said: “GoQBot demonstrates a solution by reconfiguring its body and could therefore enhance several robotic applications such as urban rescue, building inspection, and environmental monitoring.”

“Due to the increased speed and range, limbless crawling robots with ballistic rolling capability could be deployed more generally at a disaster site such as a tsunami aftermath. The robot can wheel to a debris field and wiggle into the danger for us.”
