Ultra-pure diamond crystal at the point of convergence combines multiple lasers into one superlaser

In a world-leading study researchers at Macquarie University have proven a method for multiplying laser power using diamond, demonstrating that a laser similar to the Star Wars ‘superlaser’ may no longer remain in science fiction.

The research, published in Laser and Photonics Reviews demonstrates a concept – reminiscent of the Star Wars Death Star sci-fi laser – where the power of multiple laser beams is transferred into a single intense output beam that can be directed to the intended target.

This new laser development has real-world and high-stakes applications where high power lasers are seen as a key tool in areas such as defence.

“Researchers are developing high power lasers to combat threats to security from the increased proliferation of low-cost drones and missile technology. High power lasers are also needed in space applications including powering space vehicles and tackling the growing space junk problem that threatens satellites,” said co-author Associate Professor Rich Mildren.

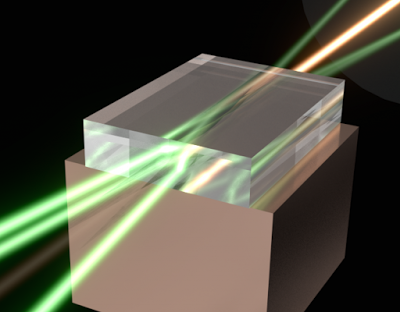

The key to the high-powered beam is placing an ultra-pure diamond crystal at the point of convergence, and the beam-combining is achieved in diamond by harnessing a co-operative effect of the crystal that causes intense light beams to transfer their power into a selected direction while avoiding the beam distortion problems of single laser technologies.

Laser and Photonic Reviews – Diamond-based concept for combining beams at very high average powers

“This discovery is technologically important as laser researchers are struggling with increasing power beyond a certain level due to the large challenges in handling the large heat build-up, and combining beams from multiple lasers is one of the most promising ways to substantially raise the power barrier,” said lead experimentalist Dr Aaron McKay.

Diamond beam combining is a novel alternative to other concepts being currently trialed elsewhere in the world, and in this study, beam combining in diamond has the unique advantage that the process also changes the colour of the laser beam.

“The particular wavelength of the directed energy beam is critical to the efficient transmission through the atmosphere and to reduce the eye hazard for people, or indeed animals, who may be in the vicinity of the beam,” said Associate Professor Mildren.

Although other materials have exhibited the same type of beam combining properties, the choice of diamond is essential for high power. The power-transfer effect at the heart of the device, called Raman scattering, is particularly strong in diamond. Also, crucially, diamond is outstanding for its ability to rapidly dissipate waste heat.

Famous Fictional combining of lasers is here


Ever since the laser’s invention, there has been great interest in increasing beam output power without detriment to its coherence. Despite great advances having been obtained through the use of a diverse range of approaches, steady-state beam powers above ten kilowatts remain a significant challenge for solid-state lasers due to the heightened impact of detrimental nonlinear effects such as thermal lensing. Multiplexing several lasers using beam combination represents a method for surpassing the power barriers of single lasers. Here we propose and demonstrate a novel approach to beam combination and power scaling based on Raman conversion in diamond. Power from multiple non-collinear pump beams is efficiently transferred onto a single Stokes beam in a single-pass amplifier. Using three mutually-independent nanosecond pulsed beams from a free-running-linewidth 1064 nm laser, 69% of the total peak pump power of 6.7 kW was transferred onto a TEM00 Stokes seed pulse at 1240 nm in a 9.5 mm long diamond crystal. Compared to other beam combination techniques, diamond beam combination has advantages of relaxed constraints on pump beam mutual coherence, while enabling narrowband output. Thermal considerations for extending from low duty-cycle to continuous wave operation and higher power levels are discussed.
