Hypertelescope capable of direct high-resolution imaging with a high limiting magnitude have been built and tested on Earth. The Hypertelescope group have proposed giant telescopes 10-25 kilometers across in lunar impact craters.
Many small mirrors can be dilutely arrayed in a lunar impact crater spanning 10 to 25km.
The light from two Keck telescopes were combined into an 85-meter (279 ft) baseline, near infrared, optical interferometer. This long baseline gave the interferometer an effective angular resolution of 5 milliarcseconds (mas) at 2.2 µm, and 24 mas at 10 µm. Several back-end instruments allowed the interferometer to operate in a variety of modes, operating in H, K, and L-band near infrared, as well as nulling interferometry. As of mid-2012 the Keck Interferometer has been discontinued for lack of funding.
The imaging resolution for giant moon telescopes with 25 kilometer and even several hundred kilometer wide hypertelescope arrays expected can reach 100 nano-arcseconds on the Moon. This would 50,000 times better resolution than the Keck interferometer. The moon space telescopes would not have to look through atmosphere.
There are 6,972 moon craters greater than 20 km (12 mi) in diameter.

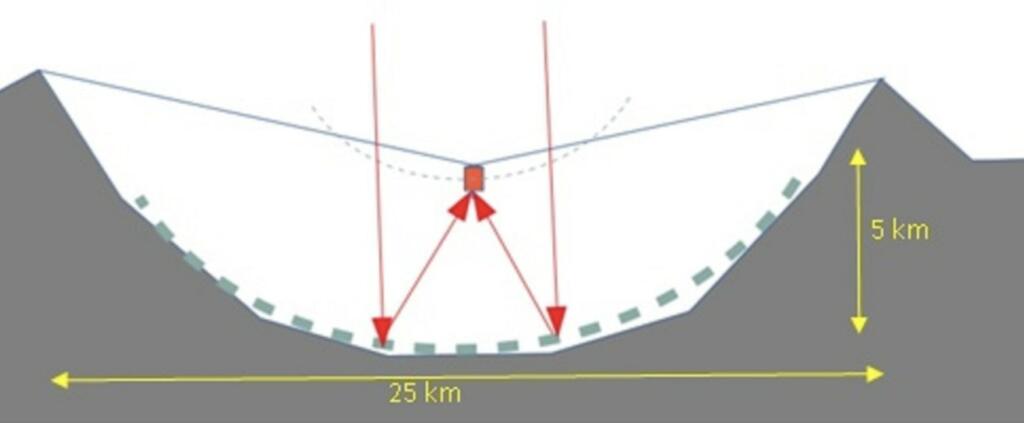

Nested Lunar Hypertelescope (NLH) with cable-suspended focal optics

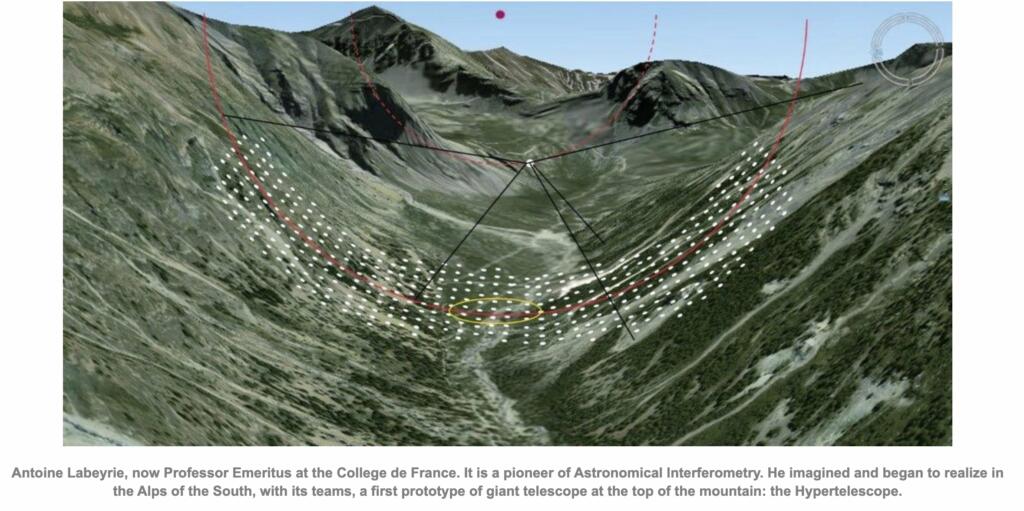

The “Ubaye hypertelescope” terrestrial prototype is a fixed-mirror array, nested in a deep valley. Its focal optics is suspended from a single crossing cable, and 6 oblique tethers actuated by small winches control its position and attitude while it tracks the focal image of the observed star. It does not require optical delay lines, and may thus have hundreds of sub-apertures, a significant advantage compared to interferometers such as the VLTI.
The experience gained in a decade of testing suggests that it can be replicated in a lunar impact crater. If and when a manned lunar station becomes installed. A fully robotic construction and operation on the Moon would be possible.
There are optical interferometer arrays that combine the light of several telescopes. The Magdalena Ridge Optical Interferometer (MROI) is an optical and near infrared interferometer under construction at MRO. When the MROI is completed, it will have ten 1.4 m (55 in) telescopes located on three 340 meters (1,120 ft) arms. Each arm will have nine stations where the telescopes can be positioned, and one telescope can be positioned at the center. This array would combine light spread across 600 meter wide baselines.
And a larger version, modified for a flat lunar site and spanning up to several hundred kilometers can be later built if needed for a higher resolution and limiting magnitude.
Concept for a Larger and Flat Lunar Hypertelescope (LFLH)
For a large array, nearly flat at the scale of several hundred kilometers, optical delay lines are needed. The optical delay lines needed with a flat array of mirrors, coplanar with the combined focus and science camera, can be achieved with extra flat mirrors, movable and arranged as a hierarchy of deformable elliptical loci.
A first prototype of Hypertelescope type “Carlina” is currently under study in France in the Ubaye Valley in the Alps of Haute Provence. When it is completed, it will be 200 m in diameter. With 800 mirrors 15 centimeters, it will accumulate two times more of collecting area than the Hubble Space Telescope and a visual acuity almost one hundred times greater. It will be five times as powerful in resolution that the future EELT from 39 meter in diameter whose construction is scheduled for 2024 by ESO to the Chile.
The current prototype model will consist of a set of mirrors on the ground already totaling 57 metres in diameter that can in principle be enlarged to 200 meters. It will have a resolution of 0.5 millisecond of arc, or 80 times better than the Hubble space telescope when the effect of atmospheric turbulence will be corrected by an adaptive optics system.
The scientific team has estimated they can build a Hypertelescope extra large with a diameter of the order of 1 km and install it in the depression of a former impact crater, in the crater of a dormant volcano or some high valleys of the Andes or of the Himalayas.
In a final version, deployed in space, the Hypertelescope diameter may be extended at least eight to ten times more than the diameter of the Earth. This will produce sharp images of the surface of exoplanets.
