September 14, 2015

Improved Computer Memory Management can enable chips with thousands of cores

A more efficient memory-management scheme could help enable chips with thousands of cores.

In a modern, multicore chip, every core — or processor — has its own small memory cache, where it stores frequently used data. But the chip also has a larger, shared cache, which all the cores can access.

If one core tries to update data in the shared cache, other cores working on the same data need to know. So the shared cache keeps a directory of which cores have copies of which data.

That directory takes up a significant chunk of memory: In a 64-core chip, it might be 12 percent of the shared cache. And that percentage will only increase with the core count. Envisioned chips with 128, 256, or even 1,000 cores will need a more efficient way of maintaining cache coherence.

In a 128-core chip, that means that the new technique would require only one-third as much memory as its predecessor. With Intel set to release a 72-core high-performance chip in the near future, that’s a more than hypothetical advantage. But with a 256-core chip, the space savings rises to 80 percent, and with a 1,000-core chip, 96 percent.

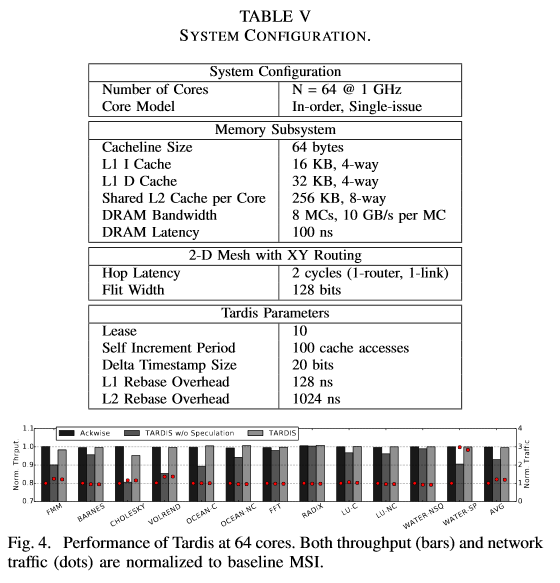

Tardis: Time Traveling Coherence Algorithm for Distributed Shared Memory




SOURCES- Technology Review, MIT
