University of Utah physicists developed an inexpensive, highly accurate magnetic field sensor for scientific and possibly consumer uses based on a “spintronic” organic thin-film semiconductor that basically is “plastic paint.”
The new kind of magnetic-resonance magnetometer also resists heat and degradation, works at room temperature and never needs to be calibrated, physicists Christoph Boehme, Will Baker and colleagues report online in the Tuesday, June 12 edition of the journal Nature Communications.
The magnetic-sensing thin film is an organic semiconductor polymer named MEH-PPV. Boehme says it really is nothing more than an orange-colored “electrically conducting, magnetic field-sensing plastic paint that is dirt cheap. We measure magnetic fields highly accurately with a drop of plastic paint, which costs just as little as drop of regular paint.”
The orange spot is only about 5-by-5 millimeters (about one-fifth inch on a side), and the part that actually detects magnetic fields is only 1-by-1 millimeters. This organic semiconductor paint is deposited on a thin glass substrate which then is mounted onto a circuit board with that measures about 20-by-30 millimeters (about 0.8 by 1.2 inches).

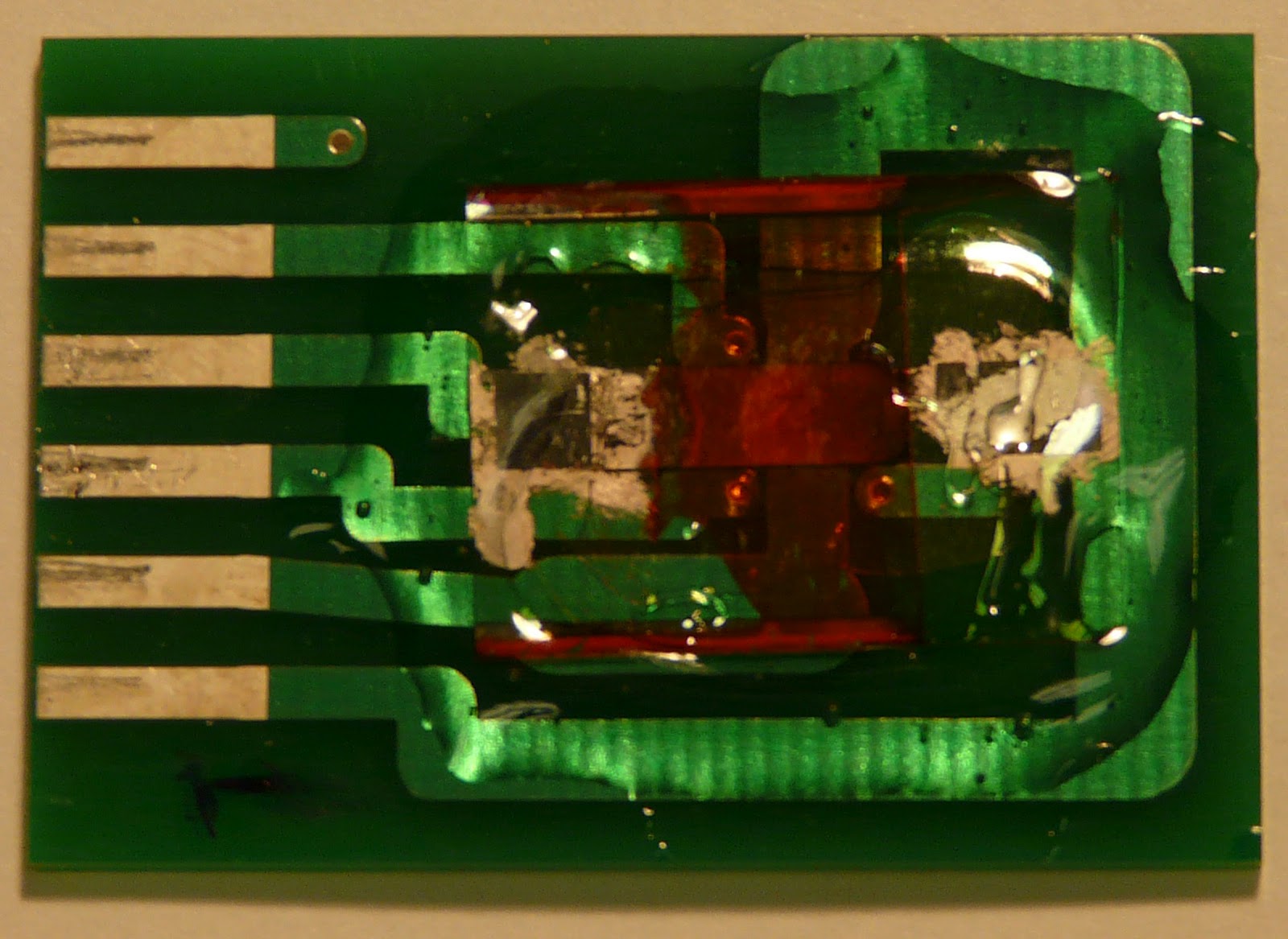

An inexpensive and highly accurate “spintronic” magnetic field sensor developed at the University of Utah is shown here. The entire device, on a printed circuit board, measures about 0.8 inches by 1.2 inches. But the part that actually detects magnetic fields is the reddish-orange thin-film semiconductor – essentially “plastic paint” – near the center-right of the device. Photo Credit: Christoph Boehme, University of Uta
Magnetic field sensors based on organic thin-film materials have attracted considerable interest in recent years as they can be manufactured at very low cost and on flexible substrates. However, the technological relevance of such magnetoresistive sensors is limited owing to their narrow magnetic field ranges (~30 mT) and the continuous calibration required to compensate temperature fluctuations and material degradation. Conversely, magnetic resonance (MR)-based sensors, which utilize fundamental physical relationships for extremely precise measurements of fields, are usually large and expensive. Here we demonstrate an organic magnetic resonance-based magnetometer, employing spin-dependent electronic transitions in an organic diode, which combines the low-cost thin-film fabrication and integration properties of organic electronics with the precision of a MR-based sensor. We show that the device never requires calibration, operates over large temperature and magnetic field ranges, is robust against materials degradation and allows for absolute sensitivities of less than 50 nT Hz−1/2.
University of Utah physics professor Brian Saam, one of the center’s principal investigators, says the new magnetometer “is viewed widely as having exceptional impact in a host of real-world science and technology applications.”
Boehme is considering forming a spinoff company to commercialize the sensors, on which a patent is pending. In the study, the researchers note that “measuring absolute magnetic fields is crucial for many scientific and technological applications.”
As for potential uses in consumer products, Boehme says it’s difficult to predict what will happen, but notes that existing, more expensive magnetic-field sensors “are in many, many devices that we use in daily life: phones, hard drives, navigation devices, door openers, consumer electronics of many kinds. However, Joe Public usually is not aware when he uses those sensors.”
“There are sensors out there already, but they’re just not nearly as good – stable and accurate – and are much more expensive to make,” Saam says.
Boehme believes the devices could be on the market in three years or less – if they can be combined with other new technology to make them faster. Speed is their one drawback, taking up to a few seconds to read a magnetic field.
Sensor Based on Organic Spintronics
The sensors are based on a field of science named spintronics, in which data is stored both electronically in the electrical charges of electrons or atomic nuclei and in what is known as the “spin” of those subatomic particles.
Described simply, spin makes a particle behave like a tiny bar magnet that is pointed up or down within an electron or a nucleus. Down can represent 0 and up and represent 1, similar to how in electronics no charge represents 0 and a charge represents 1. Spintronics allows more information – spin and charge – to be used than electronics, which just uses charge.
The new magnetic field sensor paint contains negatively charged electrons and positively charged “holes” that align their spins parallel or not parallel in the absence or presence of a magnetic field – but only if radio waves of a certain frequency also are applied to the semiconductor paint.
So an electrical current is applied to the new device. Electrical contacts in the device act as tiny broadcast antennas to bombard the plastic paint with radio waves, which the researchers gradually change in frequency. If a magnetic field is present, the spins in the polymer paint will flip when the frequency of the radio waves matches the magnetic field. The change of spin in the paint is converted to an electrical current the researchers then read to determine magnetic field strength.
Because the paint is an organic polymer, the sensor is known as an organic spintronics device.
Device Works Even if ‘Old and Crusty’
The new magnetometer can detect magnetic fields ranging from 1,000 times weaker than Earth’s magnetic field to tens of thousands times stronger – a range that covers intermediate to strong magnetic fields, Boehme says.
He says the new magnetometer cannot measure very weak magnetic fields, which now are measured by devices known as SQUIDS. It can measure strong magnetic fields, and although conventional magnetic resonance devices do that very well, they are bulky and expensive – such as those used in medical MRI machines – so the low cost and small size of the new magnetometers may give them some advantages. But the major use of the new devices is for intermediate strength magnetic fields, for which no existing device works as well, Boehme says.
Boehme’s new sensor is known as an organic magnetic resonance magnetometer or OMRM. Its one disadvantage is it is slow, taking up to a few seconds to detect a magnetic field. Boehme hopes to combine his technology with similar developing magnetometer technology known as an organic magnetoresistant sensor, or OMAR, which is more than 100 times faster but requires calibration, isn’t very accurate, detects only weak to moderate magnetic fields and is vulnerable to temperature fluctuations and material degradation.
The new device “can literally get old and crusty, and as long as it can carry a detectable current, the magnetic field can be measured accurately,” Boehme says.
Boehme says new experiments will determine how much smaller the 1-square-millimeter sensing area can be made and still have it accurately detect magnetic fields. He is aiming for 1 million times smaller: “It’s a matter of microfabrication.”
