Meet “Super H mode,” a newly discovered state of tokamak plasma that could sharply boost the performance of future fusion reactors. This new state raises the pressure at the edge of the plasma beyond what previously had been thought possible, creating the potential to increase the power production of the superhot core of the plasma.
Discovery of this mode has led to a new line of research within plasma physics that aims to define a path to higher power. The route could prove particularly promising for ITER, the international experiment under construction in France to demonstrate the feasibility of fusion energy.
Researchers led by Wayne Solomon of the U.S. Department of Energy’s Princeton Plasma Physics Laboratory (PPPL) accessed the new state on the DIII-D National Fusion Facility that General Atomics operates for DOE in San Diego. Motivating their findings were theoretical predictions of a plasma state beyond H-mode, the current regime for high-level plasma performance.

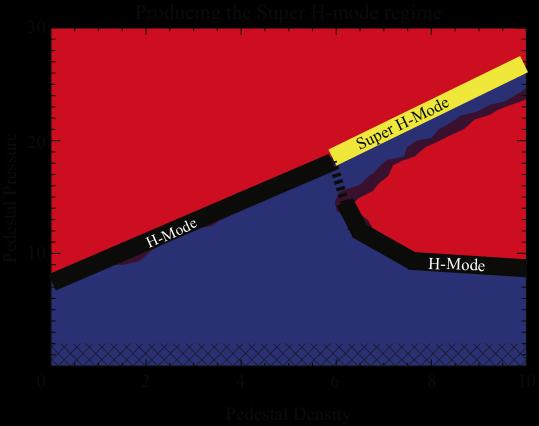

In this figure, the red signifies instability while blue is the quiescent region. Plasma density needs to increase along the narrow blue channel to reach the Super H-mode state. CREDIT Image adapted from General Atomics.
The team is led by Dr. Xianzu Gong of ASIPP and Dr. Andrea Garofalo of General Atomics (GA) in San Diego. Using both China’s EAST facility and the DIII-D National Fusion Facility, operated by GA for the U.S. Department of Energy, the team has investigated the “high-bootstrap current” scenario, which enhances self-generated (“bootstrap”) electrical current to find an optimal tokamak configuration for fusion energy production.
oving the plasma closer to the wall removed the kink mode and enabled higher plasma pressure, which, in turn, makes the plasma less dependent on externally injected flow. This is important because in a tokamak reactor, such as ITER, it is very difficult and expensive to drive a rapid plasma flow with external means.
The team performed the most recent bootstrap exploration in DIII-D, following-up work on the record-setting milestone achieved at China’s EAST tokamak, where GA scientists have also been collaborating. An ASIPP scientist Dr. Qilong Ren will deliver the invited talk on the topic of Magnetic Confinement-Experiments.
Philip Snyder, director of Theory and Computational Science for General Atomics’ Energy and Advanced Concepts Group, developed the predictions. His surprising discovery was that a model called EPED predicted more than one type of edge region in tokamak plasmas, with the previously unknown Super H-mode among them.
Such regions are called “pedestals” because they serve as ledges in H-mode plasmas from which the pressure drops off sharply. The higher and wider the pedestal the greater the density and pressure, which together act like thermoses to contain the man-made plasma at more than 100 million degrees C. “It’s an important way that we can reach fusion conditions efficiently,” said Snyder, whose model predicted a new pedestal height that corresponds to the super H-mode.
Verification of this prediction is what the researchers found. Their experiments reached the higher Super H-mode regime by steadily increasing density in a quiescent state that naturally avoids pedestal collapses. The results caused the plasma to follow a narrow path to the Super H-mode, the physics equivalent of steering a boat through rocky shores.
