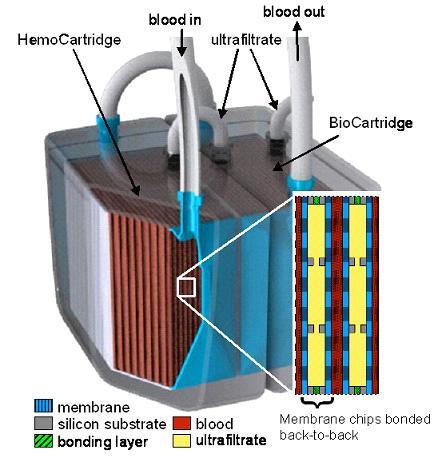

A model of the implantable bioartificial kidney shows the two-stage system. Thousands of nanoscale filters remove toxins from the blood, while a BioCartridge of renal tubule cells mimics the metabolic and water-balance roles of the human kidney.
UCSF researchers today unveiled a prototype model of the first implantable artificial kidney, in a development that one day could eliminate the need for dialysis. The device, which would include thousands of microscopic filters as well as a bioreactor to mimic the metabolic and water-balancing roles of a real kidney, is being developed in a collaborative effort by engineers, biologists and physicians nationwide, led by Shuvo Roy, PhD, in the UCSF Department of Bioengineering and Therapeutic Sciences.
The team has established the feasibility of an implantable model in animal models and plans to be ready for clinical trials in five to seven years.
End-stage renal disease, or chronic kidney failure, affects more than 500,000 people per year in the United States alone, and currently is only fully treated with a kidney transplant. That number has been rising between 5-7 percent per year, Roy said, in part because of the kidney damage associated with diabetes and hypertension.
Yet transplants are difficult to obtain: a mere 17,000 donated kidneys were available for transplant last year, while the number of patients on the transplant waiting list currently exceeds 85,000, according to the Organ Procurement ant Transplant Network.
Roughly 350,000 patients are reliant on kidney dialysis, Roy explained, which comes at a tremendous cost. The Medicare system alone spends $25 billion on treatments for kidney failure – more than 6 percent of the total budget – while the disease affects only 1 percent of Medicare recipients
The treatment has been proven to work for the sickest patients using a room-sized external model developed by a team member in Michigan. Roy’s goal is to apply silicon fabrication technology, along with specially engineered compartments for live kidney cells, to shrink that large-scale technology into a device the size of a coffee cup. The device would then be implanted in the body without the need for immune suppressant medications, allowing the patient to live a more normal life.
“This device is designed to deliver most of the health benefits of a kidney transplant, while addressing the limited number of kidney donors each year,” said Roy, an associate professor in the UCSF School of Pharmacy who specializes in developing micro-electromechanical systems (MEMS) technology for biomedical applications. “This could dramatically reduce the burden of renal failure for millions of people worldwide, while also reducing one of the largest costs in U.S. healthcare.”
It costs $75,000 per patient each year for dialysis, according to the U.S. Renal Data System. Dialysis also takes a human toll. A typical dialysis schedule is three sessions per week, for 3 to 5 hours per session, in which blood is pumped through an external circuit for filtration. This is exhausting for patients and only replaces 13 percent of kidney function, Roy said. As a result, only 35 percent of patients survive for more than 5 years.
With the limited supply of donors, that means thousands of patients die each year waiting for a kidney.
The implantable device aims to eradicate that problem. The two-stage system uses a hemofilter to remove toxins from the blood, while applying recent advances in tissue engineering to grow renal tubule cells to provide other biological functions of a healthy kidney. The process relies on the body’s blood pressure to perform filtration without needing pumps or an electrical power supply.
