Researches from the Laboratory of Nanooptics and Plasmonics at the MIPT Center of Nanoscale Optoelectronics have developed a new method for optical communication on a chip, which will give a possibility to decrease the size of optical and optoelectronic elements and increase the computer performance several tenfold. According to their article published in Optics Express, they have proposed the way to completely eliminate energy losses of surface plasmons in optical devices.
“Surface plasmon polaritons have previously been proposed to be used as information carriers for optical communication, but the problem is that the signal is rapidly attenuated propagating along plasmonic waveguides. Now, we have come very close to the complete solution of this problem. Our approach clears the way for the development of a new generation of high performance optoelectronic chips”, says Dmitry Fedyanin, the head of the research.

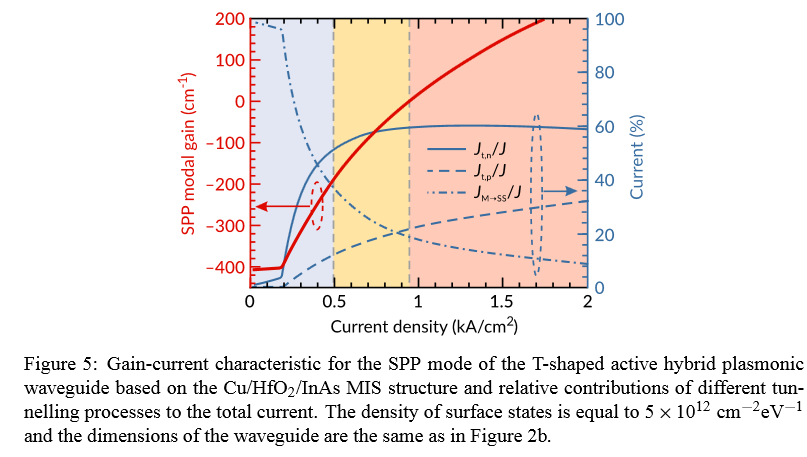

Surface plasmon polaritons (SPPs) give an opportunity to break the diffraction limit and design nanoscale optical components, however their practical implementation is hindered by high ohmic losses in a metal. Here, we propose a novel approach for efficient SPP amplification under electrical pumping in a deep-subwavelength metal-insulator-semiconductor waveguiding geometry and numerically demonstrate full compensation for the SPP propagation losses in the infrared at an exceptionally low pump current density of 0.8 kA/cm2. This value is an order of magnitude lower than in the previous studies owing to the thin insulator layer between a metal and a semiconductor, which allows injection of minority carriers and blocks majority carriers reducing the leakage current to nearly zero. The presented results provide insight into lossless SPP guiding and development of future high dense nanophotonic and optoelectronic circuits.
Modern electronics is based on the use of electrons as information carriers, but they have ceased to meet the contemporary requirements: standard electrical copper wires and channels on chips cannot transfer information with speeds sufficient for modern microprocessors. This currently hinders the microprocessor performance growth; hence, the implementation of new groundbreaking technologies is required to maintain Moore’s law.
Transition from electrical to optical pulses can solve the problem. The high frequency of light waves (hundreds of terahertz) allows transferring and processing more data, and, therefore, gives a possibility to increase performance. Fiber optic technologies are widely used in communication networks, but the use of light in microprocessors and logical elements faces the problem of diffraction limit, since the size of waveguides and other optical elements cannot be significantly smaller than the light wavelength. These are micrometers for near-infrared radiation used for optical communications, which doesn’t meet the requirements of the contemporary electronics. Logical elements of standard contemporary processors are dozens of nanometers in size. “Optical electronics” can become competitive only if light is “compressed” to this scale.
Overcoming the diffraction limit is possible with transition from photons to surface plasmon polaritons, which are collective excitations emerging due to interaction between photons and electron oscillations on the boundary between a metal and an insulator. They are also called quasi-particles, because, by their properties, they are quite similar to standard particles such as photons or electrons. Unlike three-dimensional light waves, surface polaritons “hold on” the boundary between two media. This gives a possibility to switch from the conventional three-dimensional optics to a two-dimensional optics.
“Roughly speaking, a photon occupies a certain volume in space, which is of the order of the light wavelength. We can “compress” it, transforming into a surface plasmon polariton. Using this approach, we can improve the integration density and reduce the size of optical elements. Unfortunately, this brilliant solution has its flip side. For the surface plasmon polariton to exist, a metal, or more specifically, an electron gas in the metal, is needed. This leads to excessively high Joule losses similar to those one has when the current is passed through metal wires or resistors”, says Dr. Fedyanin.
According to him, the surface plasmon energy drops a billion times at distances of around one millimeter due to absorption in the metal, which de facto makes the practical implementation of surface plasmons pointless.
“Our idea is to compensate the surface plasmon propagation losses by pumping extra energy to surface plasmon polaritons. It should be also noted that, if we want to integrate plasmonic waveguides on a chip, we can use only electrical pumping,” explains the researcher.
He, together with his colleagues Dmitry Svintsov and Aleksey Arsenin from the Laboratory of Nanooptics and Plasmonics, has developed a new method of electric pumping of plasmonic waveguides based on the metal-insulator-semiconductor (MIS) structure and carried out its simulations. The results show that the passage of relatively weak pump currents through the nanoscale plasmonic waveguides give a possibility to fully compensate the surface plasmon propagation losses. This means that it becomes possible to transmit a signal over long distances (in chip standards) with no losses. At the same time, the integration density of such active plasmonic waveguides is an order of magnitude higher than that of photonic waveguides.
