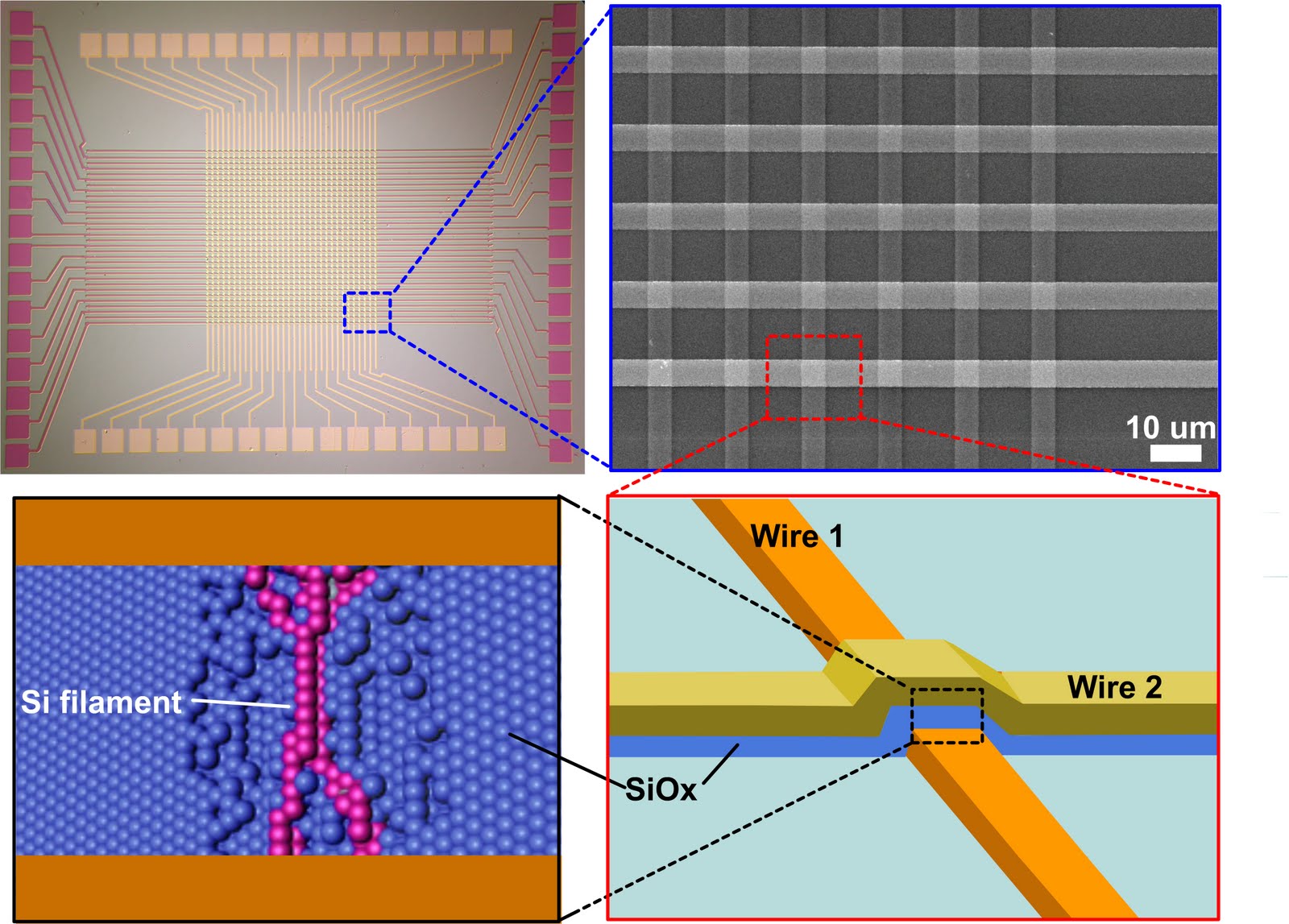

Rice University scientists have created the first two-terminal memory chips that use only silicon, one of the most common substances on the planet, in a way that should be easily adaptable to nanoelectronic manufacturing techniques and promises to extend the limits of miniaturization subject to Moore’s Law. Nanocrystal conductors could lead to massive, robust 3-D storage. The nanocrystal wires are as small as 5 nanometers (billionths of a meter) wide, far smaller than circuitry in even the most advanced computers and electronic devices.
“The beauty of it is its simplicity,” said Tour, Rice’s T.T. and W.F. Chao Chair in Chemistry as well as a professor of mechanical engineering and materials science and of computer science. That, he said, will be key to the technology’s scalability. Silicon oxide switches or memory locations require only two terminals, not three (as in flash memory), because the physical process doesn’t require the device to hold a charge.
It also means layers of silicon-oxide memory can be stacked in tiny but capacious three-dimensional arrays. “I’ve been told by industry that if you’re not in the 3-D memory business in four years, you’re not going to be in the memory business. This is perfectly suited for that,” Tour said.
Silicon-oxide memories are compatible with conventional transistor manufacturing technology, said Tour, who recently attended a workshop by the National Science Foundation and IBM on breaking the barriers to Moore’s Law, which states the number of devices on a circuit doubles every 18 to 24 months.
Austin tech design company PrivaTran is already bench testing a silicon-oxide chip with 1,000 memory elements built in collaboration with the Tour lab. “We’re real excited about where the data is going here,” said PrivaTran CEO Glenn Mortland, who is using the technology in several projects supported by the Army Research Office, National Science Foundation, Air Force Office of Scientific Research, and the Navy Space and Naval Warfare Systems Command Small Business Innovation Research (SBIR) and Small Business Technology Transfer programs.
Silicon-oxide circuits carry all the benefits of the previously reported graphite device. They feature high on-off ratios, excellent endurance and fast switching (below 100 nanoseconds).
They will also be resistant to radiation, which should make them suitable for military and NASA applications. “It’s clear there are lots of radiation-hardened uses for this technology,” Mortland said.
Silicon oxide also works in reprogrammable gate arrays being built by NuPGA, a company formed last year through collaborative patents with Rice University. NuPGA’s devices will assist in the design of computer circuitry based on vertical arrays of silicon oxide embedded in “vias,” the holes in integrated circuits that connect layers of circuitry. Such rewritable gate arrays could drastically cut the cost of designing complex electronic devices.
