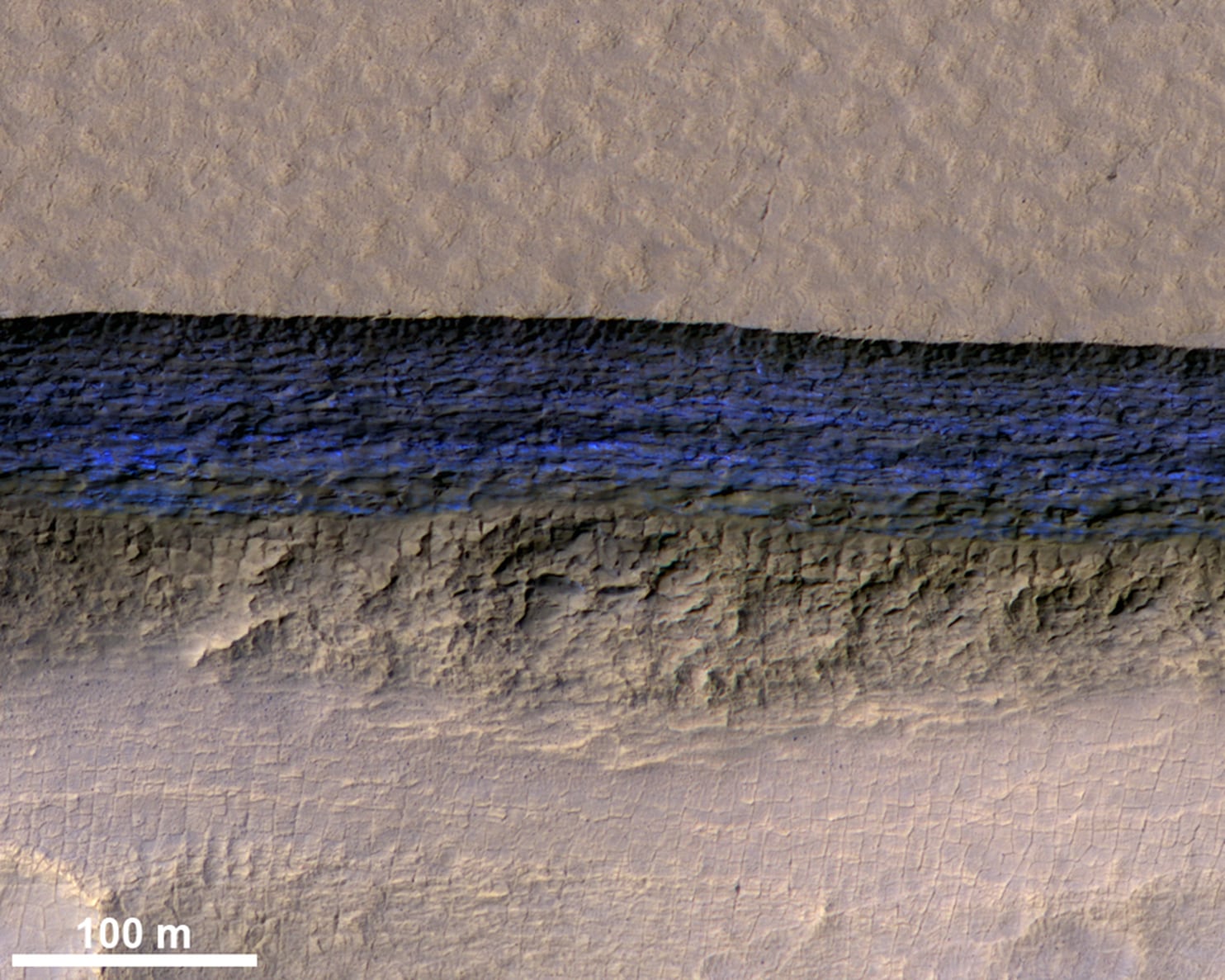

Above – A cross-section of underground ice is exposed at the steep slope that appears bright blue in this enhanced-color view from the HiRISE camera on NASA’s Mars Reconnaissance Orbiter. The scene is about 550 yards wide. The scarp drops about 140 yards from the level ground in the upper third of the image. Image Credit: NASA/JPL-Caltech/UA/USGS
These eight scarps, with slopes as steep as 55 degrees, reveal new information about the internal layered structure of previously detected underground ice sheets in Mars’ middle latitudes.
The ice was likely deposited as snow long ago. The deposits are exposed in cross section as relatively pure water ice, capped by a layer one to two yards (or meters) thick of ice-cemented rock and dust. They hold clues about Mars’ climate history. They also may make frozen water more accessible than previously thought to future robotic or human exploration missions.
Researchers who located and studied the scarp sites with the High Resolution Imaging Science Experiment (HiRISE) camera on MRO reported the findings today in the journal Science. The sites are in both northern and southern hemispheres of Mars, at latitudes from about 55 to 58 degrees, equivalent on Earth to Scotland or the tip of South America.
“There is shallow ground ice under roughly a third of the Martian surface, which records the recent history of Mars,” said the study’s lead author, Colin Dundas of the U.S. Geological Survey’s Astrogeology Science Center in Flagstaff, Arizona. “What we’ve seen here are cross-sections through the ice that give us a 3-D view with more detail than ever before.”
The discovery reported today gives us surprising windows where we can see right into these thick underground sheets of ice,” said Shane Byrne of the University of Arizona Lunar and Planetary Laboratory, Tucson, a co-author on today’s report. “It’s like having one of those ant farms where you can see through the glass on the side to learn about what’s usually hidden beneath the ground.”
Scientists have not determined how these particular scarps initially form. However, once the buried ice becomes exposed to Mars’ atmosphere, a scarp likely grows wider and taller as it “retreats,” due to sublimation of the ice directly from solid form into water vapor. At some of them, the exposed deposit of water ice is more than 100 yards, or meter, thick. Examination of some of the scarps with MRO’s Compact Reconnaissance Imaging Spectrometer for Mars (CRISM) confirmed that the bright material is frozen water. A check of the surface temperature using Odyssey’s Thermal Emission Imaging System (THEMIS) camera helped researchers determine they’re not seeing just thin frost covering the ground.
Researchers previously used MRO’s Shallow Radar (SHARAD) to map extensive underground water-ice sheets in middle latitudes of Mars and estimate that the top of the ice is less than about 10 yards beneath the ground surface. How much less? The radar method did not have sufficient resolution to say. The new ice-scarp studies confirm indications from fresh-crater and neutron-spectrometer observations that a layer rich in water ice begins within just one or two yards of the surface in some areas.
Astronauts’ access to Martian water
The new study not only suggests that underground water ice lies under a thin covering over wide areas, it also identifies eight sites where ice is directly accessible, at latitudes with less hostile conditions than at Mars’ polar ice caps. “Astronauts could essentially just go there with a bucket and a shovel and get all the water they need,” Byrne said.
The exposed ice has scientific value apart from its potential resource value because it preserves evidence about long-term patterns in Mars’ climate. The tilt of Mars’ axis of rotation varies much more than Earth’s, over rhythms of millions of years. Today the two planets’ tilts are about the same. When Mars tilts more, climate conditions may favor buildup of middle-latitude ice. Dundas and co-authors say that banding and color variations apparent in some of the scarps suggest layers “possibly deposited with changes in the proportion of ice and dust under varying climate conditions.”
This research benefited from coordinated use of multiple instruments on Mars orbiters, plus the longevities at Mars now exceeding 11 years for MRO and 16 years for Odyssey. Orbital observations will continue, but future missions to the surface could seek additional information.
“If you had a mission at one of these sites, sampling the layers going down the scarp, you could get a detailed climate history of Mars,” suggested MRO Deputy Project Scientist Leslie Tamppari of NASA’s Jet Propulsion Laboratory, Pasadena, California. “It’s part of the whole story of what happens to water on Mars over time: Where does it go? When does ice accumulate? When does it recede?”
Water ice cliffs on Mars
Some locations on Mars are known to have water ice just below the surface, but how much has remained unclear. Dundas et al. used data from two orbiting spacecraft to examine eight locations where erosion has occurred. This revealed cliffs composed mostly of water ice, which is slowly sublimating as it is exposed to the atmosphere. The ice sheets extend from just below the surface to a depth of 100 meters or more and appear to contain distinct layers, which could preserve a record of Mars’ past climate. They might even be a useful source of water for future human exploration of the red planet.
Thick deposits cover broad regions of the Martian mid-latitudes with a smooth mantle; erosion in these regions creates scarps that expose the internal structure of the mantle. We investigated eight of these locations and found that they expose deposits of water ice that can be >100 meters thick, extending downward from depths as shallow as 1 to 2 meters below the surface. The scarps are actively retreating because of sublimation of the exposed water ice. The ice deposits likely originated as snowfall during Mars’ high-obliquity periods and have now compacted into massive, fractured, and layered ice. We expect the vertical structure of Martian ice-rich deposits to preserve a record of ice deposition and past climate.
